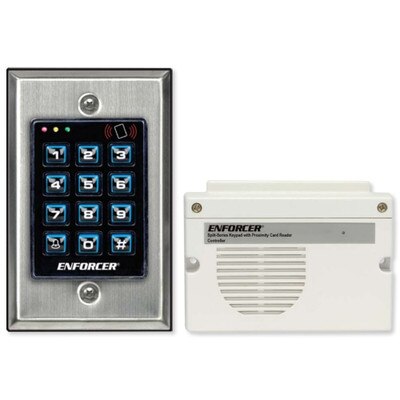

Seco-Larm Enforcer Split Series Keypad with Proximity Card Reader

SKU: SESK4131SPSQ

Usually ships in 3-5 days.

$44.44

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Protect Your Keypad Settings From Tampering

Grant access to your home, office, or other sensitive area by keypad code or proximity card, without the risk of unauthorized entry by tampering, with the Seco-Larm Enforcer Split Series Keypad with Proximity Card Reader. While the keypad/proximity reader itself installs outside the door, its computing controller installs inside (connected to the keypad by wiring through the wall), thereby preventing potential intruders from tampering with the controller. All settings are safely protected indoors. And the keypad remains easy to use. To unlock your door, simply enter your code or wave an authorized proximity card/tag (sold separately) within 1-1/2 inches of the keypad.

  • Operates up to three different entryways (doors, gates, etc.)
  • Supports 1,000+ user codes and/or proximity cards/tags
  • Compatible with Seco-Larm 125kHz proximity cards/tags
  • Keypad illuminates when a button is pressed for easy nighttime use
  • Controller's built-in door chime announces that access has been granted
  • Simple 3-wire connection between keypad and controller

Installation Details

The keypad unit surface-mounts to a wall with the included single-gang back box and screws. The controller surface-mounts on the other side of the wall with the included screws, and uses a simple 3-wire connection through the wall to communicate with the keypad.

Settings are programmed directly through keypad, so no external programmer is needed. EEPROM Memory protects programmed information in case of power loss.

Contents

  • Keypad
  • Controller
  • (2) Diodes
  • Keypad Back Box
  • (2) Installation Screws
  • (5) Mounting Screws
  • (5) Mounting Screw Anchors
  • Owner's Manual

NOTE: Proximity cards/tags sold separately.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

Product Features

  • 12~24 VDC auto-adjusting operation
  • Up to 1,000 possible user codes (000~999) and/or proximity cards for output #1, 100 (001~100) for output #2, 100 (001~100) for output #3
  • Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
    • Output #1: Form C relay, 5A@24VDC max.
    • Output #2: Form C relay, 1A@24VDC max.
    • Output #3: Form C relay, 1A@24VDC max.
  • Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
  • Tamper output: N.C. dry contact, 50mA@24VDC max.
  • Backlight can be programmable for FULL or AUTO in standby mode
  • Built-in current limited (750mA) power source for keypad for added security
  • Keypad active, alarm, duress, and interlock output: Transistor ground, 100mA@24VDC max.
  • EEPROM Memory protects programmed information in case of power loss
  • Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, 10 (01~09) for output #3
  • Programmable egress input with optional warning alarm and delayed egress
  • Door sensor input for anti-tailgating operation
  • Interlocking input for connecting to a second keypad for mantrap applications
  • Simple 3-wire connection between keypad and controller

Technical Details

  • Manufacturer Part #: SK-4131-SPSQ
  • Operating Voltage: 12~24 VDC
  • Current Draw (at 12VDC):
    • Standby: 88mA
    • Keypress: 115mA
    • Output 1 active 115mA
    • Output 1, 2 active 128mA
    • Output 1, 2, 3 active 138mA
    • Total max. current draw: 220mA
  • Outputs:
    • #1 – Form C 5A@24VDC
    • #2 – Form C 1A@24VDC
    • #3 – Form C 1A@24VDC
    • Alarm: 100mA@24VDC
    • Key Active: 100mA@24VDC
    • Duress: 100mA@24VDC
    • Interlock: 100mA@24VDC
    • Tamper: 50mA@24VDC
  • Inputs:
    • Egress: N.O. Ground
    • Door Sensor: N.C. Ground
    • Door Inhibit: N.O. Ground
    • Doorbell: N.O. Ground
    • Tamper: N.C. Ground
  • Proximity Reader Frequency: 125kHz (EM 125)
  • Proximity Reader Sensing Distance: 1-1/2 inches (38mm)
  • Operating Humidity: 5 to 95 percent (non-condensing)
  • Operating Temperature: -4° to 158°F (-20° to 70°C)
  • Dimensions:
    • Keypad: 4-5/8(H) x 2-7/8(W) x 1-1/2(D) inches (117 x 73 x 38 mm)
    • Controller: 3-7/16(H) x 4-3/4(W) x 1-1/4(D) inches (87 x 120 x 32 mm)
  • Weight:
    • Keypad: 6.3 ounces (180g)
    • Controller: 8.8 ounces (250g)
  • Approvals: FCC, CE, RoHS
  • Warranty: Lifetime Limited (U.S. and Canada); 1 Year Limited for All Other Countries
