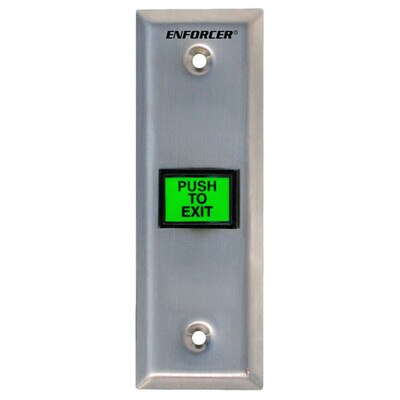

Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Timer

Slim Design For Narrow Installation

The Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Built-In Timer Plate is illuminated with a "PUSH TO EXIT" caption that can be easily changed to "PRESIONE PARA SALIR" in the field. It includes a built-in timer that allows you to extend activation time up to 180 seconds. The slimline plate features a narrow design for easy installation on tight wall panels.

• Built-in timer, 1 to 180 seconds with buzzer output for audio status
• Both English and Spanish messages included
• Long-life green LED momentary button
• Rubber-sealed switch to prevent liquid penetration
• Plastic terminal protector for dividing individual terminals

Contents

• "PUSH TO EXIT" and "PRESIONE PARA SALIR" message plates
• (6) Wire leads with easy-to-attach spade lugs for fast installation
• Stainless-steel slimline plate
• 680 ohm resistor

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Wire Leads: 12-inch, AWG 18, color-coded
• Mechanical Lifetime: 2,000,000 operations
• Unit Dimensions: 4-1/2 x 2-3/4 x 1-3/4 inches (114 x 70 x 45mm)
• Button: N.O./N.C. contacts rated, DPST, 3 Amps at 24VDC
• Button Dimensions: 15/16 x 11/16 inches
• LED: 12/24 VAC/VDC, approx. 35,000-hour life
• Resistor: 680 ohms, 0.5W
• Plug-In Terminals: 6
• CE and UL approved

»Seco-Larm Enforcer SD-7103GC-PTQ Slimline Push-to-Exit Plate, Illuminated with Timer Installation Manual (.pdf)
