Seco-Larm Enforcer SPST Tubular Key Lock, Shunt On/Off

SKU: SESS0902Hx

Please Select Option To View Availability

Back
$9.86 to $13.78

Please Select Option To View Availability

$9.86 to $13.78

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

High-Security On/Off Switch For Arm/Disarm Alarm Or Shunt Zone

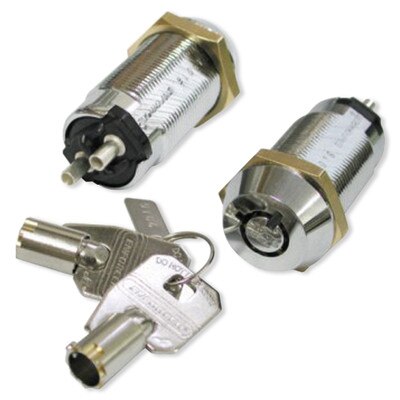

The Seco-Larm Enforcer SPST Tubular Key Lock (Shunt ON/OFF) is commonly used as an ON/OFF switch to arm/disarm alarm inputs or other applications requiring high-security, maintained ON/OFF operation. It features 2 terminals and the key is removable from both ON and OFF positions.

Specifications of Models

SS-090:

  • Operation: Maintained ON/OFF
  • Key Removal: ON and OFF position

SS-090-1H0

  • Operation: Maintained ON/OFF
  • Key Removal: OFF position only

SS-095

  • Operation: Maintained OFF, springs back from ON
  • Key Removal: OFF position

SS-090KN

  • Spare/Replacement Keys

Contents

  • Tubular Key Lock Switch
  • (2) Keys

Seco-Larm Key Lock Switches

The Seco-Larm Key Lock Switches are ideal for use in residential, commercial, industrial, and vehicle burglar alarm systems, as well as computer systems, data processing equipment, and other types of equipment or machinery that requires operation by authorized personnel only.

They feature patented "See-Saw" contacts to assure a reliable, automatically self-adjusted contact even after the contacts are worn out from prolonged use, or otherwise misaligned by vibration such as uneven road surfaces. They are designed and built to resist expert picking and attacking.

A terminal divider between terminals prevents the possibility of shorting wires when making connections.

The fiber-bakelite base is highly resistant to heat; terminals are unaffected by soldering even at 750°F (400°C) for 120 seconds. In addition, fiber bakelite makes the base extremely durable and virtually unaffected by most forms of attack.

Round terminals allow choosing between either solder or crimping connections. Key prevented from turning 360° and from slipping past the ON and OFF positions. Chrome-plated brass outer housing combines durability with superior looks.

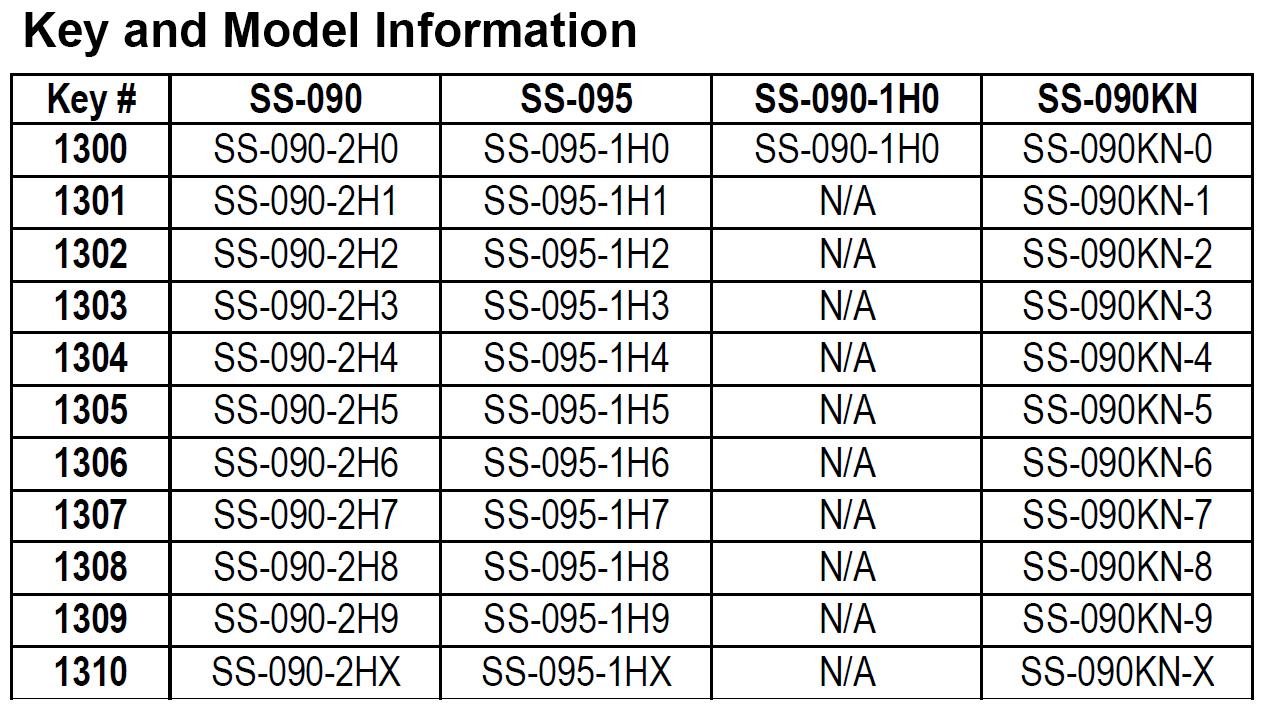

Specifications

  • Manufacturer Part #:
    • SS-090-2H0: #1300
    • SS-090-2H1: #1301
    • SS-090-2H2: #1302
    • SS-090-2H3: #1303
    • SS-090-2H4: #1304
    • SS-090-2H5: #1305
    • SS-090-2H6: #1306
    • SS-090-2H7: #1307
    • SS-090-2H8: #1308
    • SS-090-2H9: #1309
    • SS-090-2HX: #1310
  • Voltage: 12VDC
  • Amperage: 2
  • Number of Terminals: 2
  • Switching Type: SPST

Downloads

»Seco-Larm Enforcer SPST Tubular Key Lock Switches Spec Sheet (.pdf)
