  • Seco-Larm Enforcer Request-To-Exit Plate with Status LED & Adjustable Buzzer

Seco-Larm Enforcer Request-To-Exit Plate with Status LED & Adjustable Buzzer

SKU: SESD7217GSBQ

Huge Savings! (All Sales Final.)

1 available at this price.

$58.95 $52.78

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Audio & Visual Indicators for Various Applications

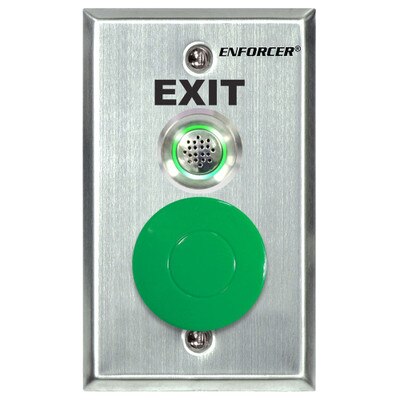

When having both visual and audio indications are important, choose the Seco-Larm Enforcer Request-To-Exit Plate with LED & Buzzer. The single-gang stainless steel plate has a traditional mushroom pushbutton for gaining entry, along with a built-in buzzer and a dual-color red/green LED to indicate status. The plate is also vandal-resistant, using the buzzer to alert you to tampering, if you desire.

  • Buzzer and LED can be configured separately
  • Buzzer provides audible status and/or tamper alerts
  • Dual-color green/red LED can be wired for various uses
  • Long-lasting LED illuminates over 50,000 hours
  • Supports dual-voltage operation at 12/24 VDC
  • Offers NO/NC contacts rated 10A at 125VAC

Suitable for a variety of applications, the buzzer's volume is adjustable and the LED can be configured to reflect a range of indications. It's great for environments with people who are visually- or hearing-impaired, where alerts are needed for "door open"/"door unlocked"/"door propped open"/"door forced open" detection, and many other applications.

Possible LED Applications:

  • Switch ON/OFF or change color when button is pressed
  • Change color when door unlocks
  • Always steady ON green or red

Contents

  • Request-to-Exit Plate
  • (2) Mounting Screws
  • (2) Resistors (1k ohms, 1/4W)
  • Instruction Manual

NOTE: Not rated for outdoor use.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SD-7217-GSBQ
  • Material: Stainless steel
  • Size: Single-gang
  • Operating Voltage: 12/24 VDC
  • Current Rating:
    • LED: 15mA at 12 VDC
    • Buzzer: 15mA at 12 VDC
  • Contact Type: NO/NC
  • LED Color: Red/Green selectable
  • Buzzer Volume: 85 to 95dB at 4 inches (10cm) – adjustable
  • Buzzer Adjustment: Variable resistor (VR)
  • Operating Temperature: -40° to 167°F (-40° to 75°C)
  • Dimensions: 4-1/2 x 2-3/4 x 1-7/8 inches (114 x 70 x 48 mm)
  • Weight: 7.6 ounces (215g)
  • Approvals: RoHS
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer SD-7217-GSBQ Request-to-Exit Plate with Status LED and Adjustable Buzzer Product Information (.pdf)
»Seco-Larm Enforcer SD-7217-GSBQ Request-to-Exit Plate with Status LED and Adjustable Buzzer Manual (.pdf)
