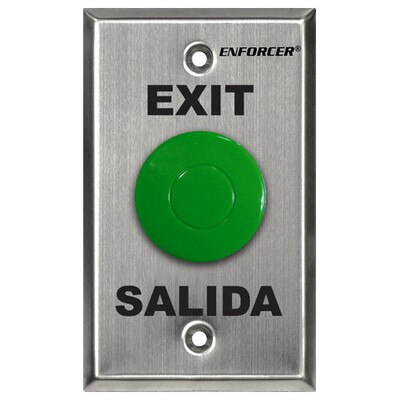

Seco-Larm Enforcer Green Mushroom Button Push-to-Exit Plate with Timer

Timer Extends Activation Time Up To 60 Seconds

The Seco-Larm Enforcer Green Mushroom Button Push-to-Exit Plate with Built-In Timer has "EXIT" and "SALIDA" silk-screened on the metal plate. It includes a built-in timer that allows you to extend activation time up to 60 seconds.

• Green mushroom cap pushbutton in stainless-steel faceplate
• Built-in timer, 1 to 60 seconds with buzzer output for audio status
• "EXIT" and "SALIDA" silk-screened on plate
• Fits into standard single-gang box

Contents

• "PUSH TO EXIT" and "PRESIONE PARA SALIR" message plates
• (6) Wire leads with easy-to-attach spade lugs for fast installation
• Stainless-steel slimline plate
• 680 ohm resistor

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: SD-7201GAPT1Q
• Color: Green
• Button Type: Mushroom-cap push button, N.O./N.C. contact rated 5 Amps at 125VAC
• Button Diameter: 1.5"
• Plate: Stainless steel, single-gang
• Warranty: 1 Year

»Seco-Larm SD-7201GAPT1Q Weather-Resistant Mushroom-Cap Request-to-Exit Plate Installation Manual (.pdf)
