Seco-Larm Enforcer Magnetic Contact, 3/4" Recessed Steel Door, 1" Gap, NC

SKU: SESM4104TQW

Order now and we'll ship same business day (if ordered before 3 pm PST).

$4.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

N.C. Contact for Steel Doors & Windows

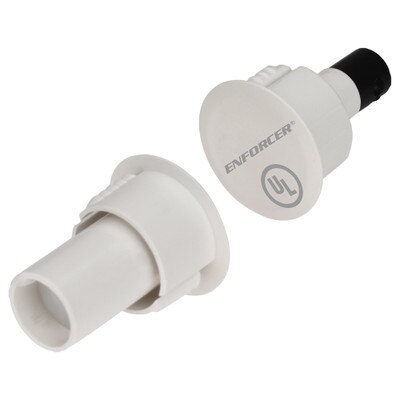

Discreetly monitor a steel door or window with the Seco-Larm Enforcer Magnetic Contact, 3/4" Recessed Steel Door (1" Gap, NC). Made of high-impact ABS plastic, the switch and magnet offer one-piece construction for strength, and gold-plated screw terminals for durability. Both pieces have ribs to fit snugly into the mounting holes. The contact works with a 1-gap in N.C. applications. Furthermore, the contact reed switch is SPST and iridium-plated, ensuring a high melting point with Vickers hardness, resulting in higher handling power and long life.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SM-4104-TQ/W
  • Circuit Type: Closed loop
  • Operation Gap: 1 inch (25mm)
  • Color: White
  • Material:
    • Case: High-impact ABS plastic
    • Terminal: Gold-plated
  • Contacts: Iridium-plated
  • Contact Rating:
    • 0.1A at 100VDC (max.)
    • 1.0A at 10VDC (max.)
    • 10W (max.)
  • Temperature: -15° to 160°F (-25° to 70°C)
  • Switch Cycles: 50 Million (0.1mA at 5VDC)
  • Dimensions:
    • Switch: 1-3/16 x 15/16 x 3/8 inches (30 x 24 x 9mm)
    • Magnet: 1-3/16 x 15/16 x 1/2 inches (30 x 24 x 13mm)
  • Magnet: Rare-earth Neodymium
  • Approvals: UL, cUL, RoHS
  • Warranty: Lifetime Limited Warranty
