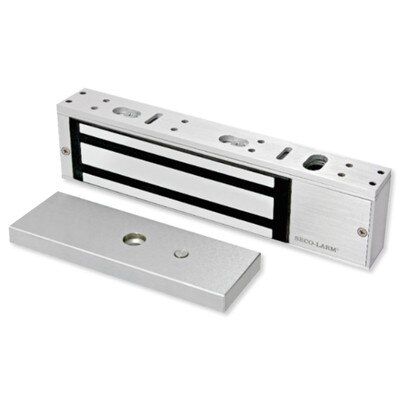

Seco-Larm Enforcer Maglock, 1,500 Lbs.

SKU: SEE941SA1K5Q

Usually ships in 3-5 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$128.26

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Ultra-Strong Holding Force For Heavy Duty Applications

With 1,500 pounds (680kg) of electromagnetic holding force, the Seco-Larm Enforcer Electromagnetic Lock, 1,500 Lbs. is ideal for securing high-security doors in heavy duty applications. This premium mag-lock is housed in anodized aluminum and features MOV surge protection to ensure long-term reliability. It also comes with a detachable faceplate, an adjustable mounting bracket, and all mounting hardware for typical installations, making installation quick and easy. (When mounting the electromagnetic lock, it may be necessary to use a "Z" bracket, 1 or 2 "L" brackets, a "U" bracket and/or plate spacers (all sold separately), depending on the location and the type of door and frame.)

  • Secures a door with 1,500 pounds (680kg) of holding force
  • Reliable security with MOV surge protection
  • Detachable faceplate for easy wiring access
  • Powered by 12 or 24 VDC
  • All mounting hardware included

Seco-Larm's E-941SA series of electromagnetic locks provide an ideal solution for securing a door, cabinet or drawer against unauthorized entry. When the electromagnetic lock is powered, a strong magnetic field is created to attract the lock to a steel armature plate that is mounted to the door. The secured door can only be opened once the electromagnet is deactivated.

Contents

  • Electromagnetic Lock
  • Bracket
  • Armature plate
  • Mounting hardware
  • Template
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

Parts List

  • Electromagnetic lock
  • Armature plate
  • Armature screw
  • 5mm Hex wrench
  • Sexnut bolt
  • Door Spacer
  • (2) Guide pins
  • (2) Rubber washers
  • (2) Steel washers
  • (8) Long self-tapping screws
  • (2) Short self-tapping screws
  • Mounting plate
  • Mounting template

Technical Details

  • Manufacturer Part #: E-941SA-1K5Q
  • Holding Force: 1,500-lb (680kg)
  • Operating Voltage: 12/24 VDC
  • Current Draw:
    • 500mA at 12VDC
    • 260mA at 24VDC
  • Coil Resistance: 46Ω ±10% per coil
  • Housing Material: Anodized aluminum
  • Operating Temperature: 14° to 131° F (10° to 55° C)
  • Dimensions:
    • Mounting plate: 1-11/4 x 1-9/16 x 1/4 inches (286 x 40 x 6 mm)
    • Electromagnet: 11-1/4 x 1-9/16 x 2-5/8 inches (286 x 40 x 67 mm)
    • Armature plate: 7-1/4 x 5/8 x 2-3/8 inches (185 x 16 x 60 mm)
  • Certifications: RoHS
  • Warranty: 1-Year

Downloads

»Seco-Larm E-941SA-1K5Q Enforcer 1,500-lb Electromagnetic Lock Spec Sheet (.pdf)
»Seco-Larm E-941SA-1K5Q Enforcer 1,500-lb Electromagnetic Lock Installation Manual (.pdf)
