Seco-Larm Enforcer Gate Maglock, 1,300 Lbs.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Strong, Sturdy, Weather Resistant

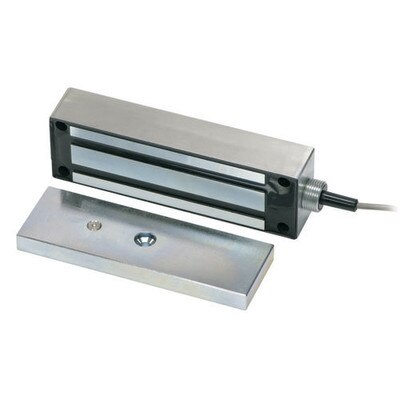

The Seco-Larm E-942FC-1300 Electromagnetic Lock is ideal for indoor and outdoor slide or swinging gate, even in severe weather. This lock has a holding force of 1,300 lbs (591kgs).
Complete mounting hardware included. Optional "L" and "Z" brackets available.
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Holding Force: 1,300 pounds (545kg)
- Operating Voltage: 12 or 24 VDC ± 10 percent
- Current Draw: 500mA at 12VDC, 250mA at 24VDC
- Temperature: 14 to 131° F (-10 to 55° C)
- Magnet size: 8 x 2-1/2 x 1-5/8 inches (203 x 63 x 41 mm)
- Armature Size: 7-1/4 x 2-3/8 x 5/8 inches (185 x 61 x 16 mm)
- Weight: 10 pounds 8 ounces (5 kg)
- Cable Length: 6-1/2 Feet (2 meters)
- Certifications: UL, ULC, CE UL for maglock only
