  • Seco-Larm Enforcer Gate Maglock, 600 Lbs. with Weldable Bracket

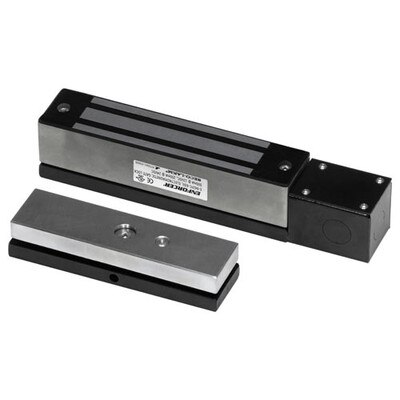

Seco-Larm Enforcer Gate Maglock, 600 Lbs. with Weldable Bracket

SKU: SEE942FC600SQ

Usually ships in 3-5 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$225.35

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Secures An Electric Gate With 600 Pounds Of Holding Force

Secure your home or business against unauthorized visitors with the Seco-Larm Enforcer Electromagnetic Gate Lock, 600 Lbs. with Weldable Bracket. Once installed on an electric gate, the maglock keeps the gate securely closed with 600 pounds (272 kg) of holding force, until released through your hardwired security system. The lock features a stainless-steel finish with water and vandal resistance for long-term outdoor use.

  • Secures outdoor sliding and swinging electric gates
  • Fail-safe operation (unlocks if power is removed)
  • Built-in MOV surge protection
  • Four knockouts on the junction box

How It Works

The maglock can be used with outdoor sliding and swinging electric gates. The steel armature plate mounts on your gate, while the maglock installs on the gate post. When the maglock is powered, the steel plate is attracted to the electromagnet, holding the gate closed.

This maglock comes with a mounting bracket that can be welded or bolted directly to the gate. The bracket is zinc-plated for corrosion resistance. The lock operates on 12 or 24 VDC power (selectable), and is pre-wired for 12VDC operation.

Contents

  • Maglock
  • Power Supply
  • Mounting Hardware
  • AC Pigtail Connector
  • DC Pigtail Connector
  • (2) Wire Connectors

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Operating Voltage: 12VDC or 24VDC
  • Holding Force: 600 pounds (272 kg)
  • Power Supply:
    • Input: 100~240 VAC at 50/60Hz
    • Output: 12VDC at 1.0A
  • Current Draw: 500mA at 12VDC, 250mA at 24VDC
  • Temperature: 14 to 131 degrees F (-10 to 55 degrees C)
  • Magnet size: 8 x 2-11/16 x 1-9/16 inches (203 x 42 x 39 mm)
  • Armature size: 6-1/4 x 1-3/8 x 5/8 inches (159 x 41 x 16 mm)
  • Junction box: 2-1/2 x 2-1/2 x 2 inches (63 x 63 x 50 mm)
  • Overall bracket (with maglock installed): 10-1/2 x1 -7/8 x 2-1/8 inches (267 x 63 x 48 mm)
  • Weight: 4 pounds 6 ounces (2kg)
  • Cable length: 12 inches
  • Certification: UL for maglock only
  • RoHS compliance: Yes
