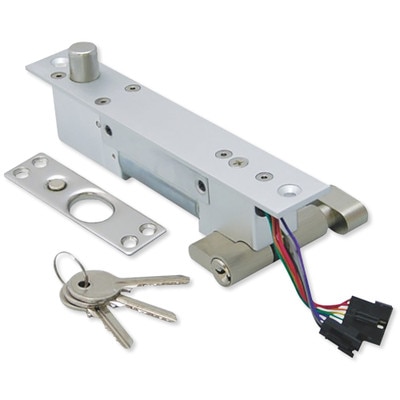

Seco-Larm Enforcer Electric Deadbolt, Fail-Secure, 12/24 VDC

SKU: SESD997AGBQ

Usually ships in 3-5 days.

$174.58

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Install An Electric Lock In A Metal Door Jamb<

Designed for hollow metal door frames, the Seco-Larm Enforcer Electric Deadbolt (Fail-Secure, 12/24 VDC) adds electric deadbolt control to a wooden or hollow metal door. Because the deadbolt features fail-secure operation (locks if power is lost), it also incorporates a manual lock/unlock cylinder that works with the included turnkeys (turn lock knob from inside protected premises and/or use key from outside protected premises). The deadbolt works with Seco-Larm keypads and features shallow design for installation in most metal door jambs.

  • Fail-secure operation (locks if power is lost)
  • Manual lock/unlock cylinder allows operation in power outage
  • Stainless steel for strength and long life
  • Adjustable door lock delay timer (0, 3, 5, or 9 seconds)
  • Magnetic switch determines door position for positive locking

The Electric Deadbolt is powered by a solenoid. If the door is not closed properly, the solenoid will attempt to lock, but then shuts off to avoid burning out. Once the door is closed properly, it will automatically lock.

Additional Features:

  • Stainless steel bolt, 5/8" diameter, 5/8" throw
  • Includes control wire which allows for releasing without cutting unit's power
  • Over-current protection 1.5A
  • Door open/close monitor (NO/C/NC)
  • Easily connects to Seco-Larm Digital Keypads
  • Suitable for office-type applications
  • Multi-directional horizontal or vertical mounting
  • Special conic cavity stainless steel plug (thickness 1.5mm~1.8mm)

Contents

  • Lock Body
  • Manual Lock/Unlock Cylinder
  • (2) Oval Cylinder Plates
  • (3) Keys
  • Strike Plate
  • Faceplate
  • 3-pin Connector
  • 6-pin Connector
  • (2) Large Mounting Tabs
  • (2) Small Mounting Tabs
  • Mounting Screws
  • (4) Templates

NOTE: Designed for hollow metal door frames only; not recommended for wooden door frames. However, the door itself can be wood or metal.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SD-997A-GBQ
  • Operation: Fail-secure
  • Current Draw:
    • Standby: 330mA at 12VDC / 205mA at 24VDC
    • Active: 880mA at 12VDC / 470mA at 24VDC
  • Over-Current Protection: 1.5A
  • Status Sensor: SPDT, 250mA at 12VDC (NO/NC/COM)
  • Operating Voltage: 12/24 VDC
  • Adjustable Delay Timer: 0, 3, 5, 9 seconds
  • Weight: 2 pounds 5 ounces (1kg)
  • Approvals: CE, RoHS, ISO 9001
  • Warranty: 1 Year
