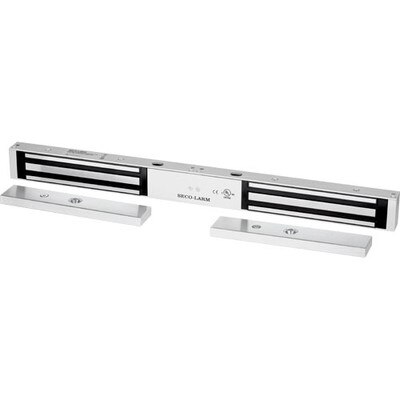

Seco-Larm Enforcer Double Door Electromagnetic Lock, Bond Sensor, 600 Lbs.

SKU: SEE941DA600PQ

Order now and we'll ship same business day (if ordered before 3 pm PST).

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$191.74

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Maglock For Double Doors

Prevent unauthorized entry through double doors by installing the Seco-Larm Enforcer Double Door Electromagnetic Lock, Bond Sensor (600 Lbs.). When powered, the electromagnetic lock creates a strong magnetic field and becomes attracted to the steel armature plates that attach to your doors. This strong force prevents anyone from opening the doors. When power is deactivated, the doors can open without any residual magnetism.

  • Housed in anodized aluminum
  • 12 or 24 VDC (selectable)
  • No residual magnetism upon deactivation
  • Built-in MOV surge protection
  • Mounting hardware included

The Double Door Electromagnetic Lock comes with all the required mounting hardware for a typical installation, including an adjustable mounting bracket and a detachable faceplate. The lock also features dual-color status LEDs and bond sensors with relays (one per door) to show the locking status of each door:

  • Green: Door is closed and locked
  • Red: Door not closed and/or locked
  • Off: Door in use/no power

Contents

  • Electromagnet
  • Mounting plate
  • (2) Armature plate
  • (2) Armature screw
  • (4) Steel washers
  • (2) Rubber washer
  • (2) Door spacer
  • (2) Sexnut bolt
  • (4) Guide pins
  • (8) Long self-tapping screws
  • (4) Short self-tapping screws
  • (4) Hex-head mounting screws
  • (4) Tamper caps
  • Allen wrench

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it’s physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Holding Force: 600 pounds (272kg)
  • Operating Voltage: 12 or 24 VDC ± 10 percent
  • Current Draw: 500mA at 12VDC, 250mA at 24VDC
  • Temperature: 14° to 131° F (-10° to 55° C)
  • Magnet Size: 19-11/16 x 1-5/8 x 1 inches (500 x 42 x 25 mm)
  • Armature Size: 7-1/4 x 1/2 x 1-1/2 inches (185 x 12 x 38 mm)
  • Certification: UL, ULC, CE
  • RoHS Compliance: Yes
  • Weight: 9 pounds (4kg)
