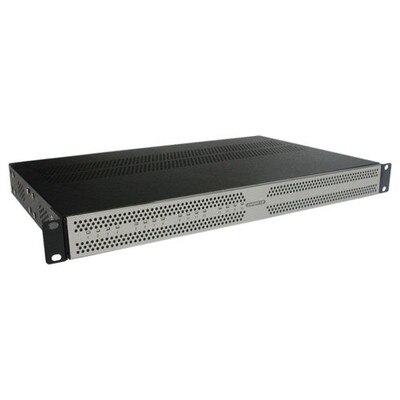

Seco-Larm Enforcer CCTV Power Supply, 24/28VAC with PTC Fuses, Rack-Mount
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Allows For Rack, Wall Or Desk & Shelf Mounting
The Seco-Larm Rack Mount Power Supply is 1U and fits into standard 19 Inch equipment racks. It features a field-selectable power output: 24/28 VAC or OFF and status LEDs to indicate if a fuse is tripped. Flexible mounting options include rack, wall, and desk. Cable management brackets make for professional, organized wiring. This power supply is designed with removable screw terminal blocks and overheat protected power transformers.
- Compact 1U height fits into standard 19" equipment racks
- Field-selectable power output: 24/28 VAC or OFF
- Status LEDs indicate if a fuse is tripped
- Flexible mounting options: rack, wall and desk mounting
- Flexible cable management options
- Removable screw terminal blocks
- Overheat-protected power transformer(s) with thermal fuse
- Attractive, high-tech industrial design
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Fuse type: PTC (Positive Temperature Coefficient)
- Input voltage: 120 VAC
- Number of outputs: 16
- Total supply current:
- 12A@24VAC max.
- 10A@28VAC max.
- Max. amps per ch.: 3A@24VAC max.
- Rack size: 1U 19" (44.5x483 mm)
- Dimensions: 1-3/4" x 17-1/2" x 11-13/32" (45x445x290 mm)
