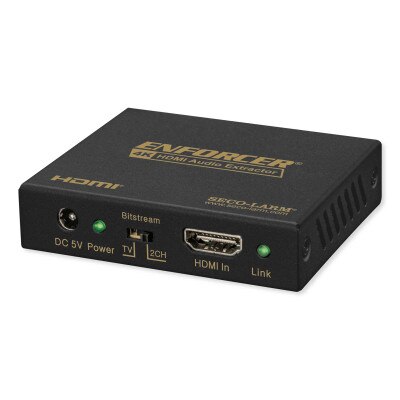

Seco-Larm Enforcer 4K HDMI Audio Extractor


Usually ships in 3-5 days.


WARNING: Cancer and Reproductive Harm –


Extract Audio Signals From Any HDMI Source

Ensure the audio signal from one HDMI source is properly transferred to an audio system or receiver with the Seco-Larm Enforcer 4K HDMI Audio Extractor. This HDMI extractor can extract audio signals from any HDMI source and transfer the signals via digital optical or analog stereo outputs to other devices such as an amplifier, a speaker, or a UHD display. The 4K HDMI Audio Extractor supports video resolutions up to 4K2K @ 50/60Hz, HDMI High Bit Rate (HBR) audio pass-through, and allows simultaneous connections of HDMI audio, multi-channel optical S/PDIF, and L/R analog stereo audio. This extractor also supports uncompressed audio LPCM, CEC bypass, and compressed audio DTS Digital and Dolby Digital (DTS-HD and Dolby True HD).

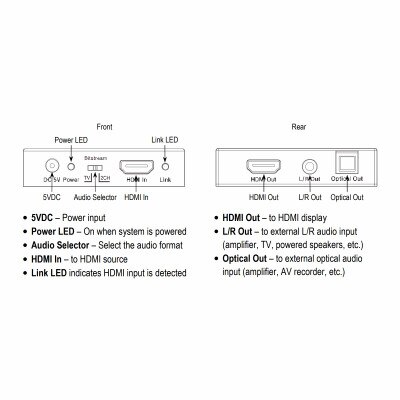

  • Extracts audio signals from an HDMI source to optical (S/PDIF) or L/R analog stereo audio sources
  • Video resolutions supported up to 4K2K@50/60Hz
  • HDMI 2.0b (full 18Gbps), HDCP 2.2, and DVI compliant
  • Optical audio supports LPCM 2Ch, Dolby Digital 2/5.1Ch, and DTS 2/5.1Ch
  • Includes 5VDC power supply


  • 4K HDMI Audio Extractor
  • 5VDC Power Supply
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.


  • Manufacturer Part #: MAP-A599-01Q
  • UPC: 676544022640
  • Video Formats Supported: HDMI 2.0b, HDCP 2.2
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 10bit, 12bit
  • EDID Management: includes three presets – TV, bitstream, and 2-channel
  • Audio Formats Supported: HDMI (Pass-through): LPCM 2.0/5.1//7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, Dolby Digital Plus (DD+), DTS HD Master, Dolby Atmos, DTS-X Optical: LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1
  • L/R Audio Formats: Analog stereo 2CH
  • Output Video: HDMI
  • Resolutions Supported: 4K2K@50/60Hz, 4K2K@30Hz, 1080p@120Hz, 1080p 3D@60Hz
  • Video Bandwidth: 18Gbps
  • Inputs: HDMI Type A 19-pin female
  • Outputs: Video: HDMI Type A 19-pin female Audio:3.5mm L/R stereo, optical (S/PDIF)
  • Max. HDMI Cable Length (IN/OUT): 4K@60Hz, 16' (5m) / 4K@30Hz, 32' (10m) / 1080p@60Hz, 50' (15m)
  • Operating Voltage: 5VDC
  • Power Supply: 1A@5VDC (1 adapter)
  • ESD Protection (Human Body Model): (air-gap discharge), ±4kV (contact discharge)
  • Current Draw: 1000mA
  • Operating Humidity: 20 to 90% non-condensing
  • Operating Temperature: 32° to 104° F (0° to 40° C)

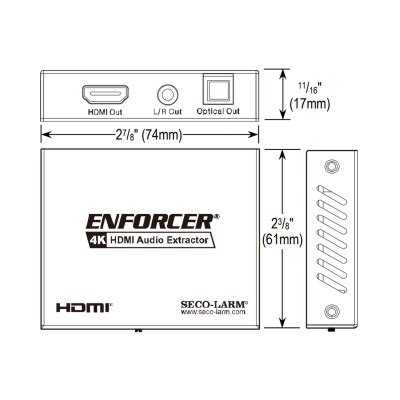

  • Dimensions: 2-7/8 x 11/16 x 2-3/8 inches (74x17x61 mm)
  • Weight: 4.6-oz (130g)
  • Certifications: IC, FCC, CE, RoHS
  • Warranty: 1 Year
