Seco-Larm Enforcer 4-in-1 Multi-Purpose Siren/Strobe

A 4-In-1 Multipurpose Siren/Strobe With Audio Inputs

Deter unwanted intruders from entering your home or business with the Seco-Larm Enforcer 4-in-1 Multi-Purpose Siren/Strobe. This unique, 4-in-1 security device can be used for communicating and signaling as a siren, LED strobe, or playbacking custom internal emergency messages or broadcasting pre-recorded audio via a PA system. This multi-purpose siren/strobe is durable for outdoor/indoor use and is weatherproof due to its IP65 rating. It's available in different options with either red, blue, clear, or amber lenses and can be easily installed on a wall or to a standard single gang, double gang, or C-type back box.

• Works as a siren or strobe and can playback audio or broadcast messages
• 115dB warble-tone siren with 20W speaker
• IP65 rated, weatherproof design for indoor/outdoor use

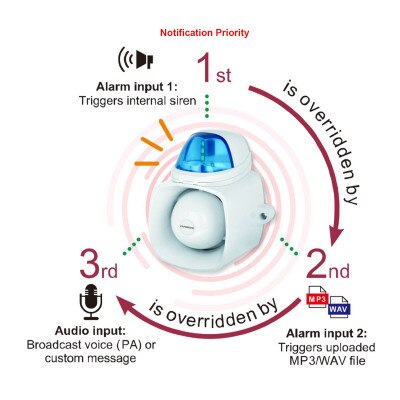

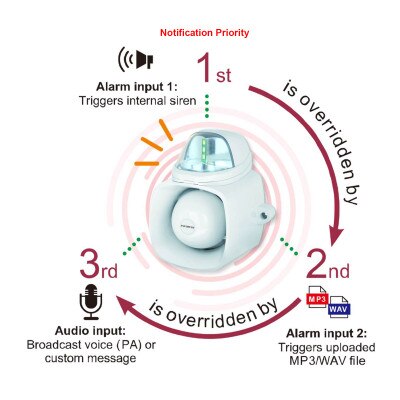

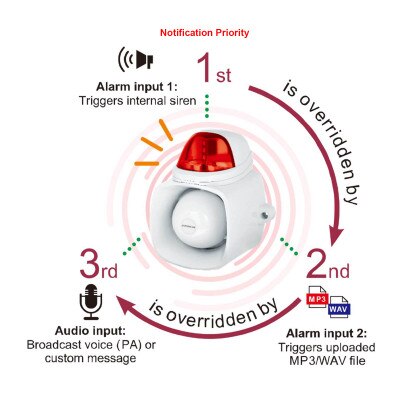

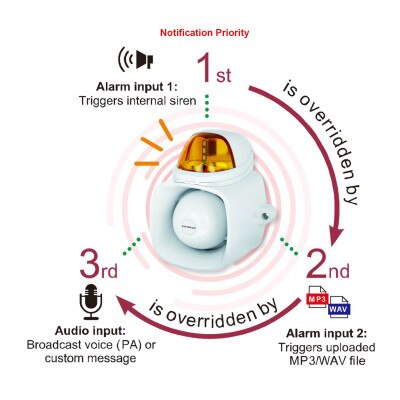

• Two inputs to sound an alarm or to broadcast messages
• Built-in tamper alarm output

Contents

• Siren/Strobe Unit
• (4) Mounting Screws
• (4) Plastic Wall Anchors
• (4) Screw Gaskets
• Back Removal Tool
• Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #:
• SH-816S-SMQ/A: (Siren/Strobe, Amber)
• SH-816S-SMQ/B: (Siren/Strobe, Blue)

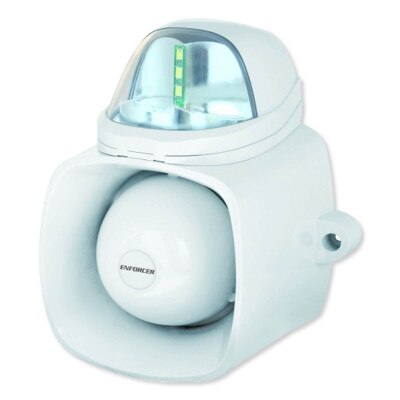

• SH-816S-SMQ/C: (Siren/Strobe, Clear)

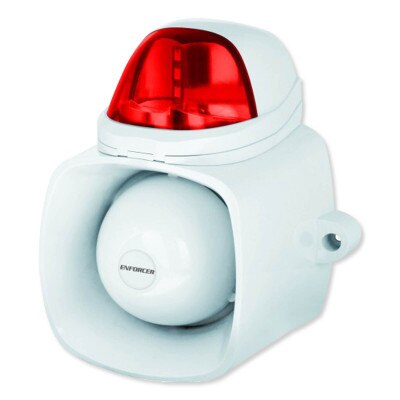

• SH-816S-SMQ/R: (Siren/Strobe, Red)
• UPC:
• SH-816S-SMQ/A: 676544022220
• SH-816S-SMQ/B: 676544022237
• SH-816S-SMQ/C: 676544022244
• SH-816S-SMQ/R: 676544022251
• Operating Voltage: 9 to 15 VDC
• Current Draw (max):
• Strobe: 50m at 12VDC
• Siren: 1A at 12VDC
• Both: 1050mA at 12VDC
• Siren Volume: 115dB
• Speaker Rating: 20W Peak
• Strobe Flash Rate: 60 Per Minute
• Tamper Output: 100mA at 30 VAC/VDC
• Custom Message: WAV or MP3 format, up to 2MB
• Upload interface: Micro-USB
• IP Rating: IP65
• Housing Material: White Polycarbonate Plastic
• Operating Temperature: -4° to 131° F (-20° to 55° C)
• Operating Humidity: 0 to 95%

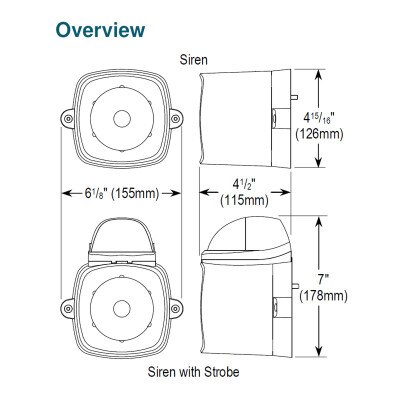

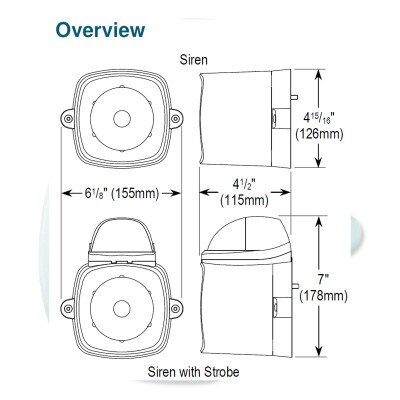

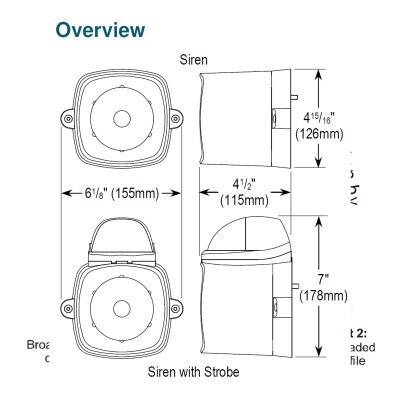

• Dimensions: 6-1/8 x 7 x 4-1/2 inches (155 x 178 x 115 mm)
• Credentials: CE, RoHS

»Seco-Larm SH-816S-SMQ/x Enforcer 4-in-1 Multi-Purpose Siren/Strobe Spec Sheet (.pdf)
»Seco-Larm SH-816S-SMQ/x Enforcer 4-in-1 Multi-Purpose Siren/Strobe Installation Manual (.pdf)
