Seco-Larm Enforcer 4-in-1 HD Video and Power Balun

Deliver HD Video Signals Across Long Distances

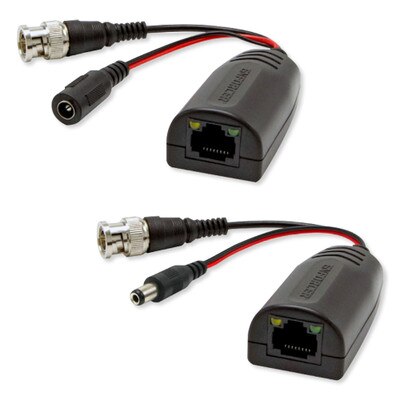

Deliver HD video signals across long distances with the Seco-Larm Enforcer 4-in-1 HD Video and Power Balun (Pair). This passive signal adapter set allows you to convert signals from BNC connections through an ethernet cable to deliver footage from your HD camera to your DVR or other HD video equipment. The baluns can also provide PoE connections to select 12/24 VAC/VDC security cameras. Connect the two baluns together with a Cat5e/6 cable for high-quality, real-time signal transmission up to 1,443 feet (depending on format, resolution, and cable used).

• Delivers BNC connections across Cat5e/Cat6 ethernet cables up to 1476ft (450m)
• 4-in-1 TVI / CVI / AHD / Analog video format up to 1080p/5MP
• NTSC / PAL / SECAM compatible
• Transmits power for 12/24 VAC/VDC cameras
• Built-in TVS surge protection, anti-static and wave filters protect data and image quality
• 60dB Crosstalk and noise immunity
• Passive operation – no external power required

These baluns support TVI, CVI, AHD, and Analog video up to 1080p and are PAL / NTSC / SECAM compatible. They feature built-in TVS surge protection and Grade III lightning protection, as well as anti-static and wave filters to guarantee optimal performance. Video quality is also boosted by 60dB crosstalk and noise immunity.

Contents

• Transmitter
• Receiver

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: EB-P101-20PHQ

Video

• Range:
• TVI 1080p: 820 ft (250m) / 5MP: 590 ft (180m)
• CVI 1080p: 820 ft (250m) / 4MP: 656 ft (200m)
• AHD 1080p: 820 ft (250m) / 5MP: 590 ft (180m)
• Analog (B/W): 1,476 ft (450m)
• Analog (Color): 1,312 ft (400m)
• Video format: NTSC, PAL, SECAM
• Frequency response: DC~71MHz
• Common / Differential mode rejection: 60dB, 15kHz~71MHz

Connections

• Wire Type: UTP (Unshielded Twisted Pair) 24~16 AWG
• Wire Category: Cat5, Cat6
• Camera Side:
• Video In: BNC
• Power Out: DC Plug
• DVR Side:
• Video Out: BNC
• Power In: DC Jack
• UTP Connection: Nickel Plated
• Attenuation: 8dB max.
• Impedance:
• Coax: male BNC 75Ω@1MHz
• RJ45: 100Ω@1MHz

Protection

• Surge Protection: Renewable solid state surge protection
• Video Input: 2KV (common mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999)
• Video Output: 2KV (differential mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999)

Other

• Max. Amperage: 1A@12VDC
• Power Range: 755' (230m) max.
• DC Loop Resistance: 52Ω/1000' (18Ω/100m)
• Differential Capacitance: 19pF/ft max. (62pF/m max.)
• Power: No external power required
• Operating Temperature: -4°~158°F (-20°~70°C)
• Storage Temperature: -40°~302°F (-40°~150°C)
• Humidity Range: 0~95% (Non-condensing)
• Case: ABS Plastic
• Weight: 2.5-oz (72g)
• Cable Length: 4-3/4" (120mm)
• Dimensions: 2-3/8"x 13/16" x 13/16" (60 x 20 x 30mm) Excluding pigtail and BNC connector
• Warranty: 2 Year Limited

»Seco-Larm Enforcer EB-P101-20PHQ 4-in-1 HD Video and Power Balun Spec Sheet (.pdf)
»Seco-Larm Enforcer EB-P101-20PHQ 4-in-1 HD Video and Power Balun Installation Manual (.pdf)
