Russound Dual Source Amplifier, 2-Channel, 75W

Dual Source 75W Amplifier With Exceptional Sound Quality

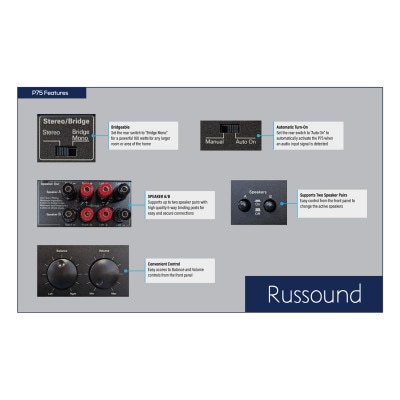

Listen to crisp, high-powered audio with the Russound Dual Source Amplifier, 2-Channel, 75W. This amplifier features 2 audio line inputs with a loop out option that can connect to another device, zone, or receiver. It delivers high performance audio with well-rounded features such as volume and balance controls, A/B speaker switching, signal sensing inputs, 12-volt triggers, and adjustable delays. The P75 is rated at 75 watts per channel into 4 ohms and 60 watts into 8 ohms; plus, it offers a bridge mode option, which is rated at 160 watts of power into a single 8 ohm load. The P75 amplifier is designed with special thermal protection circuitry to safeguard the amplifier in case of a thermal overload and it comes with protection circuitry that protects it under a short-circuit condition. Besides being a dual source amplifier, the Russound P75 can also be used as a single source amplifier for providing upgraded, high-powered audio in indoor or outdoor areas of your home that need it the most.

• 2-channel, dual source amplifier can connect to another source with a loop out
• 75 watts per channel into 4 ohms and 60 watts per channel into 8 ohms
• Switches between two sources automatically with signal sensing
• Bridge mode provides 160 watts of power into a single 8 ohm load
• Signal sensing inputs for automatic on/off and switching to second source

Contents

• P75 Dual Source Amplifier, 2-Channel, 75W
• Mounting Hardware
• Manual

Notes

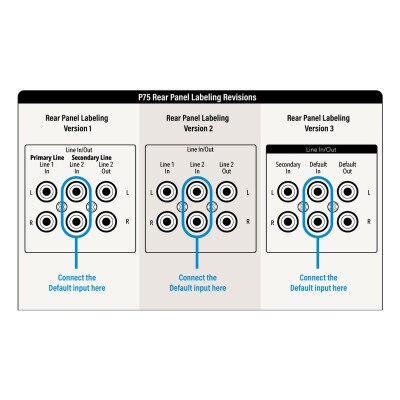

• When using the P75 as a single audio source the default audio device needs to be connected to the "Default In" in the rear panel.
• When connecting speakers to the P75 amplifier, use a minimum 16 gauge and maximum 12 gauge stranded copper cable.

Russound Brings Engineered Innovation and Extraordinary Sound

The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.

• Manufacturer Part #: P75
• UPC: 612934536267
• Crosstalk: > 70dB @ 1 kHz
• Frequency Response: 10Hz to 30kHz +0.0dB/- 3.0dB @ 8 ohms, 1 W
• Input Sensitivity: 900mV for 50W at 8 ohms
• Power Output: 60W per channel at 8 ohms
• Power Requirement(s): 120VAC 60Hz 4.2A
• Signal to Noise Ratio: 100dB A-weighted
• Dimensions: 16.5(W) x 8(D) x 2.5(H) inches (41.9 x 20.3 x 6.4 cm)
• Certifications: UL
• Warranty: 1 Year Limited

»Russound P75 Integration Amplifier Spec Sheet (.pdf)
»Russound P75 Dual Source Power Amplifier Installation Manual (.pdf)
