PCS PulseWorx UPB Wall Controller with Load Dimmer, 7 Button

One Switch for Many UPB Devices

As a dual-purpose UPB controller, the PulseWorx UPB Wall Controller with Load Dimmer (7 Button) combines the functionality of PulseWorx's popular KPC Keypad Controllers with a 400W Dimmer Switch. The standard keypad portion controls UPB receivers around your home, while the dimmer portion enables both local and UPB remote On/Off/Dim control for a wired dimmable lighting fixture.

• Controls up to six UPB devices or scenes
• Dimmer provides direct load control
• Pre-programmed with 8 light scenes
• Can be a member of 16 different scenes
• 16 function modes for each button
• Fits in a single-gang box

Each of the seven buttons on the keypad can be programmed to provide direct load control, remote control over other single UPB-enabled devices, or UPB scene control. The keypad itself can also be a member of up to 16 different scenes.

The keypad is pre-programmed with 8 preset lighting scenes, so you can create warm, welcoming moods with ease. The dimmer controls incandescent lights, low-voltage halogen, magnetic or dimmable electronic transformers (up to 4A). You also have the option of setting the keypad to a non-dimming mode if you need to control non-dimming loads, such as fluorescent lighting.

The keypad mounts into a standard single-gang box, so it can easily replace an existing switch. Buttons are backlit to provide easy viewing at night, and the brightness is adjustable.

NOTE: Wallplate not included.

PulseWorx Products Utilize UPB Technology

PulseWorx is a complete Lighting Control System that uses existing powerlines to give residential customers one-touch control over their home's lighting. PulseWorx products are designed to work within the current framework that already exists in the home, no new wires are required. PulseWorx products utilize UPB technology, providing the most reliable powerline controls available today.

• Manufacturer Part #: KPLD-7

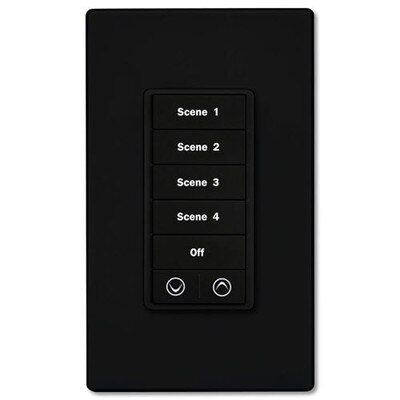

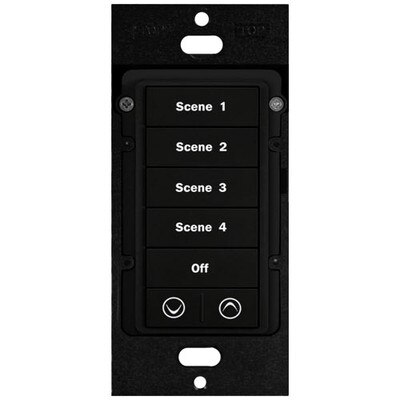

• KPLD-7-B (Black)

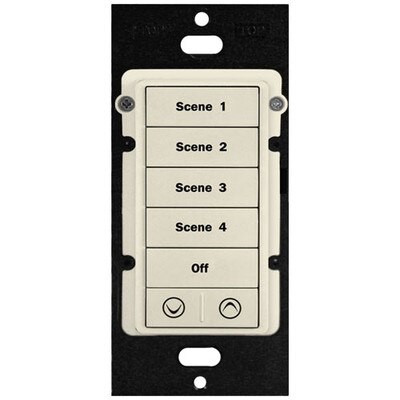

• KPLD-7-LA (Light Almond)

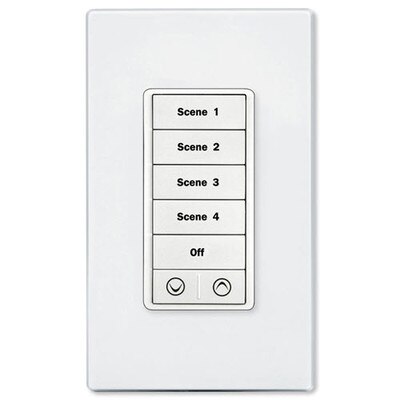

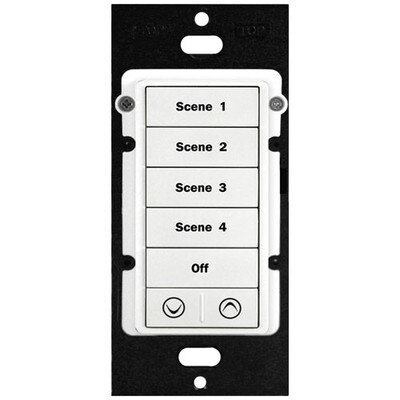

• KPLD-7-W (White)

Electrical

• Power Requirements: 120 Volts AC, 50/60Hz
• Transmission Channels: 8 Links/Scenes
• Connections/Power Wire:
• Two 16 AWG gauge, 105° C insulation
• Black – Hot/Line
• White – Neutral
• Red – Load
• Green – Ground
• AC Power Cord: NEMA1-15P 6 Foot Cable
• Max. Load: 400W / 4.0A
• Standby Power Consumption: 0.8 Watts
• Environmental Conditions: Indoor Use Only
• Temperature: -40 to 140° F (-40 to 60° C)
• Humidity: 10 to 90 percent RH (non-condensing)
• Certifications: Safety tested for USA and Canada to ETL tested to UL508; UL-508-2010 CSA C22.2 #14-2010

Operation

• Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
• LED Indicators: Blue, One per button; LED reflects status of Group
• IR Receiver: No
• During Power Outage: Retains all settings in Non-volatile EERPOM
• Setup Mode: Press and Hold ON/OFF Button for 3 Seconds. All LEDs will Flash.

Mechanical

• Button Type: 7 mechanical latching contact type buttons
• Wire Nuts: 2 included
• Mounting: Single-gang or multiple-ganged junction box
• Dimensions: 4.12(H) x 1.75(W) x 1.20(D) inches
• Weight: 5.6 ounces
• Warranty: 5 years
• US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.

»PCS PulseWorx KPLD-7 UPB Wall Controller with Load Dimmer Specifications (.pdf)
»PCS PulseWorx KPLD-7 UPB Wall Controller with Load Dimmer Manual (.pdf)

UPStart UPB Software

This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
