Pro-Wire Jack Plate (8 Banana Jacks), White (Open Box)


Huge Savings! (All Sales Final.)

1 available at this price.

$5.50 $9.95

WARNING: Cancer and Reproductive Harm –



This product is brand new; however, we did ship it to a previous customer who promptly returned it. The product is still in great condition, but the original box may be damaged or missing. We offer FREE tech support and are selling this as is, with no returns.

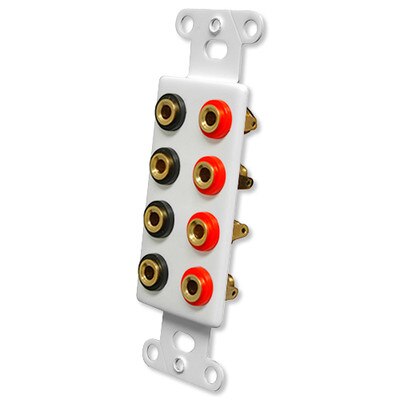

Decorator Style Jack Plate With Gold Connectors

Customize your audio/video installation with the Pro-Wire 8 Banana Jacks Jack Plate, one of the pre-built plates from OEM Systems.

  • 4 red and 4 black jacks (4 pair) accepts standard Banana plug for (high) speaker level signals (Plugs are sold separately)
  • Wiring should be minimum 18 gauge CL rated (Use 16 or 14 gauge for longer runs)
  • Wiring may be soldered or attached via spade lugs
  • Decorator style jack plate
  • Plate mounts in standard "J" box with included screws
  • All steel plate with Gold-plated jack

NOTE: Black, Brown and Gray are available by special order. Contact us for details.

High Performance Accessories From OEM Systems

In addition to home audio speakers, OEM Systems Company offers a wide variety of accessories under their popular Pro-Wire product line. The Pro-Wire line consists of modular connectors, a wide variety of jack plates, banana plugs, volume controls, decorator style blank plates, mud rings, box buddies and more. No home theater system or whole house audio system should be considered complete without the use of OEM's professionally designed and engineered Pro-Wire products.


Product Features

  • Accepts banana plugs from the front

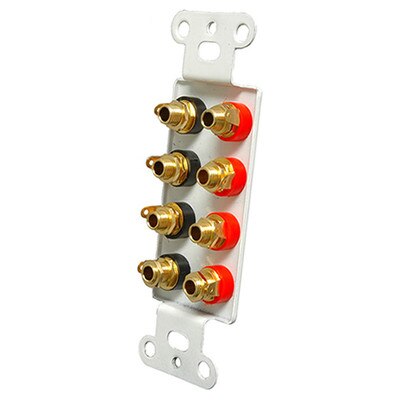

  • Solder terminals on the back accepts an 18 AWG wire
  • Flush finish
  • 4 single conductor Red (+) terminals
  • 4 single conductor Black (-) terminals
  • For larger wire, use a .250" crimp ring terminal (not included) and tighten down with the provided nut

Technical Details

  • Manufacturer Part #: IW-8BG w
  • UPC: 769381581002
  • Color: White
