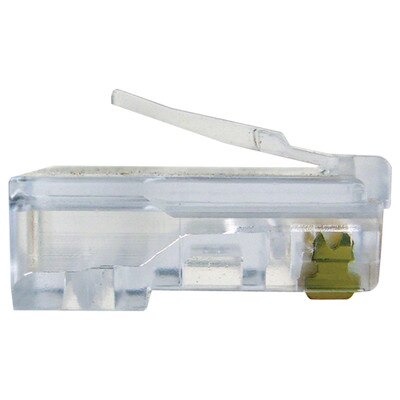

Platinum Tools RJ45 Cat5e Connector, Round Stranded (25 Pack)

Staggered Design Isolates Conductors

Featuring hi-lo staggered construction, the Platinum Tools RJ45 Cat5e High Performance Connectors, Round-Stranded (25 Pack) allow you to isolate each conductor during termination of round stranded wire. This enhances performance beyond that of standard Cat5e cables.

• Hi-lo stagger isolates each conductor
• Improves standard Cat5e performance
• 2-prong stranded conductor contacts
• Gold-plated contacts (50 gold micro-inches)

Platinum Tools Makes Connections Easy!

Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of our products absolutely must satisfy three critical benchmark criteria – Utility of function, Quality of function, and Economic value.

• Manufacturer Part #: 106162C
• Plug Material: Polycarbonate
• Contact Material: Phosphor Bronze
• Plating: 50µ Gold
• Flammability Rating: UL94V-2
• Approvals: UL, RoHS, FCC
• Warranty: 1 Year

»Platinum Tools 10616xC RJ45 Cat5e High Performance Connectors Specifications (.pdf)
