Platinum Tools Pocket-Sized PoE Detector

LEDs Indicate Detection of PoE Network Voltage

Detect PoE end/mid-span voltages on network cables and jacks using the Platinum Tools Pocket-Sized PoE Detector. This mini-sized detector is small enough to fit in your pocket or add to your toolbox without hassle.

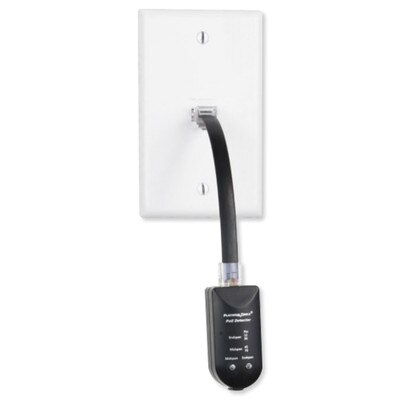

The PoE detector features bright-shining LEDs that make it easy to see instant "GO/NO-GO" detection on PoE networks. To test a network, you can either plug your network cable directly into the detector's built-in RJ45 jack, or use the included patch cord to plug the detector into a wall jack and detect its voltage. The PoE Detector is also 802.3af or 802.3at compatible.

• Bright LEDs make it easy to see instant "GO/NO-GO" detection
• Perfect for voltage detection on PoE ports, switches, routers, injectors
• Cable plugs directly into RJ45 jack, or use included patch cord
• Compatible with 802.3af or 802.3at PoE standards
• Voltage detection range between 24V-48V

Differentiates Between End-Span & Mid-Span

Designed for testing PoE ports, switches, routers, and injectors, the Platinum Tools Pocket-Sized PoE Detector differentiates between end-span and mid-span voltage. End-span PoE power detection for PoE switches or routers is indicated by voltages on pairs 1/2 and 3/6 on the detector. Mid-span detection for voltage from injectors is indicated by voltages on pairs 4/5 and 7/8.

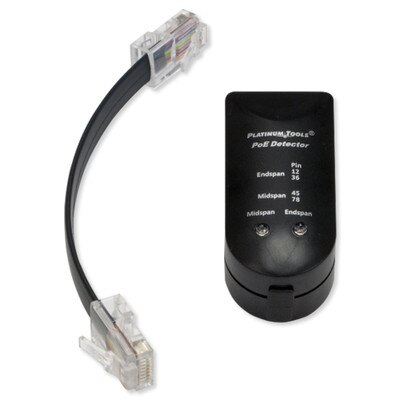

Contents

• Pocket-Sized PoE Detector
• Patch Cord

Platinum Tools Makes Connections Easy!

Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of our products absolutely must satisfy three critical benchmark criteria - Utility of function, Quality of function, and Economic value.

• Manufacturer Part #: TPS100C
• PoE Standard Compatibility: 802.3af or 802.3at
• Detection Range: 24V-48V

»Platinum Tools TPS100C PoE Detector Brochure (.pdf)
