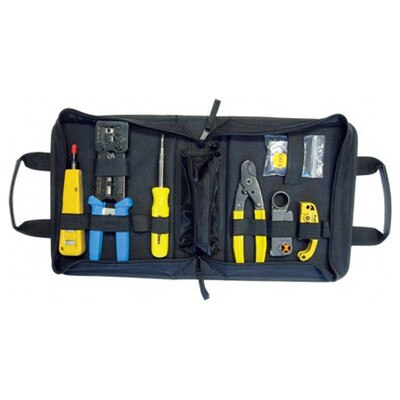

Platinum Tools Basic HD Twisted Pair & Coax Kit

SKU: PL90150

Usually ships in 1-2 days.

$225.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Speed Up Your Phone/Data Installs

Perfect for the professional installer of phone and data structured wiring systems, the Platinum Tools Basic HD Twisted Pair & Coax Kit comes with everything you need to quickly set up high-performance Cat 5/5e/6+ data networks. Along with a variety of cable cutters, strippers, and other accessories, the kit features the EZ-RJ45 HD Crimp Tool, plus 500 compatible EZ connectors to make twisted pair and coax terminations a breeze.

Kit Components

  • EZ-RJPRO HD Crimp Tool: Crimp tool for larger cables. Perfect for Cat5e, CAT6, and Cat5e/Cat6 shielded cables. Compatible with EZ-RJ45 and EZ-RJ12/11 connectors, and standard modular plugs (except AMP). Built-in wire cutter and strippers.
  • EZ-RJ45 Cat5/5e Connectors: EZ connectors simplify twisted pair terminations by allowing the wires to be inserted through the connector and routed out the front.
  • Coax & Round Wire Cable Cutter: Cuts solid and stranded wire to 8 AWG, and multi-conductor and coaxial cable to 1/2-inch diameter. Curved, precision ground cutting blade prevents deformities in conductors or dielectric.
  • Ceramic Kevlar Scissors: Cuts fiberglass aramid fibers in fiber optic cables. Uses Zirconia ceramic blades that never need sharpening.
  • Cat5/6 Cable Jacket Stripper: Strips cable jackets off Cat5, Cat5e and Cat6 twisted pair cables. No blade adjustments are required.
  • PRO Punchdown Tool: Terminates circuitry in Cat5e/6 cross connects. Spring-loaded for easy wire seating and termination. Bayonet style (twist and lock) blade retention socket.
  • Punchdown 110 Style Blade: 110 style blade for impact punchdown tools. Reversible -- one end seats and trims off the wire and the other end is for "no-cut" installations. Bayonet-style blade easily twist-locks securely in the punch end of the tool.
  • 6-in-1 Screwdriver: Screwdriver handle with three double-ended reversible bits: #1 and #2 Phillips; #5 and #7 Slotted; and 1/4" and 5/16" Nut Drivers.

Kit Includes

  • EZ-RJPRO HD Crimp Tool (100054C)
  • (10) EZ-RJ45 CAT5/5e Connectors, 500 Packs (105003)
  • Coax & Round Wire Cable Cutter (10500C)
  • Ceramic Kevlar Scissors (10530C)
  • Cat 5/6 Cable Jacket Stripper (15015C)
  • PRO Punchdown Tool (13100C)
  • Punchdown 110 Style Blade (13002C)
  • 6-in-1 Screwdriver (19001C)
  • Heavy-Duty Reinforced Nylon Zippered Case (4001NPT)
  • User Instructions

Platinum Tools Makes Connections Easy!

Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of our products absolutely must satisfy three critical benchmark criteria – Utility of function, Quality of function, and Economic value.

Specifications

  • Manufacturer Part #: 90150
  • Warranty: 1 Year

EZ-RJPRO HD Crimp Tool (100054)

  • Dimensions: 8-1/2 x 2-1/2 inches
  • Weight: 1 pound, 2.3 ounces

EZ-RJ45 Cat5/5e Connectors (105003)

  • Approvals: FCC, RoHS, UL

Cat5/6 Cable Jacket Stripper (15015C)

  • Dimensions: 3-1/2 x 1-1/8 x 3/4 inches

PRO Punchdown Tool (13100C)

  • Weight: 6 ounces
  • Dimensions: 6.1(L) x 1.5(W) inches
  • Warranty: 5 Years
