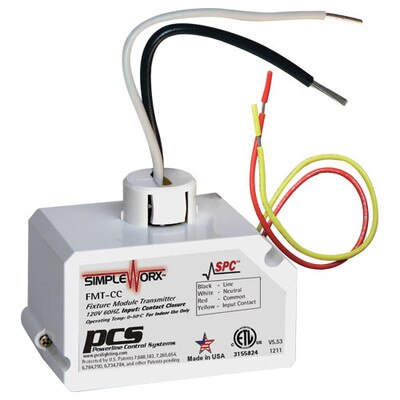

PCS SimpleWorx Fixture Module Transmitter

Mounts Inside Any Fixture Or Electrical Box

The Fixture Module Transmitter allows you to trigger one device when another is activated. Connect the transmitter, for example, to a motion sensor and a SimpleWorx receiver. When the motion sensor detects motion, the transmitter is activated and triggers the corresponding receiver. Perhaps your receiver is connected to a lamp. Therefore, the motion sensor would turn your lamp on when motion is detected.

• Triggers a SimpleWorx receiver when activated
• Connect any line-voltage device such as a switch, motion sensor, etc.
• Easy 3-wire installation with 14 AWG wires

The transmitter is a wire-in module that provides a single line-voltage input trigger. This input can be connected to any line-voltage device such as a switch, motion sensor, photo sensor, etc. to trigger SimpleWorx receivers. The device can be mounted inside any fixture or electrical box.

About SimpleWorx

SimpleWorx is a revolutionary digital point to points control system that cost-effectively provides basic on/off lighting control. SimpleWorx is powered by SPC (Simple Powerline Communication), a rock solid proven technology that offers efficient solutions for remotely turning lights on and off. SPC provides super reliable one-way control of lights and appliances using existing 120V wiring, and offers significant benefits above older powerline technologies or traditional Wired and RF solutions.

• Manufacturer Part #:
• FMT-AC: 120V Input
• FMT-CC: Closed Contact Input
• Easy snap-in installation through 1/2" knockouts
• Plenum rated
