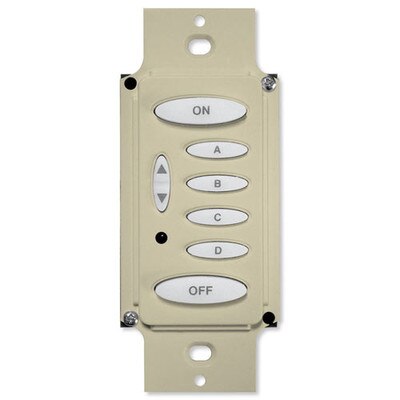

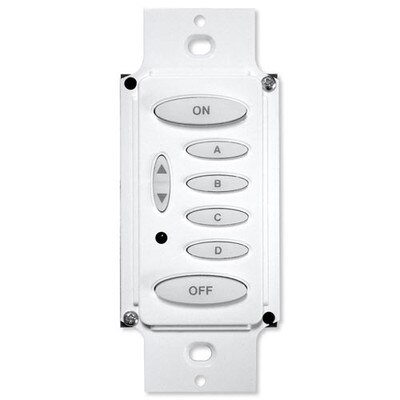

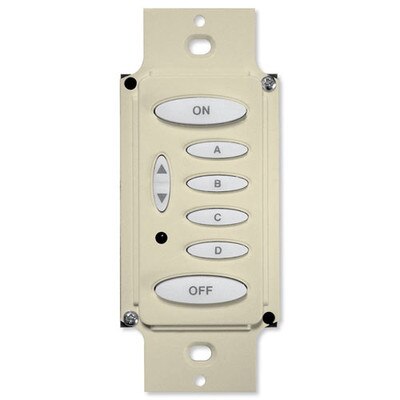

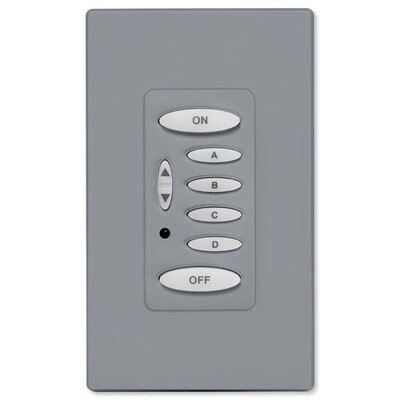

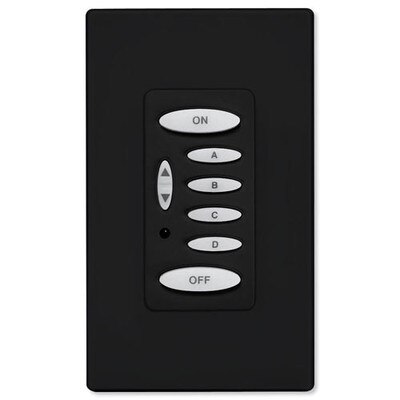

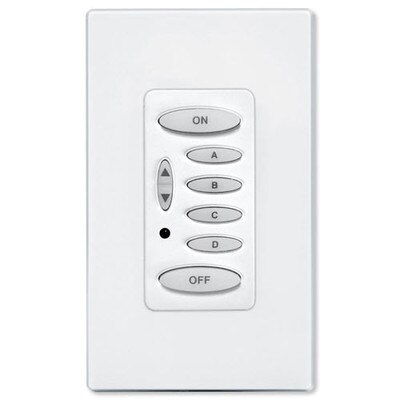

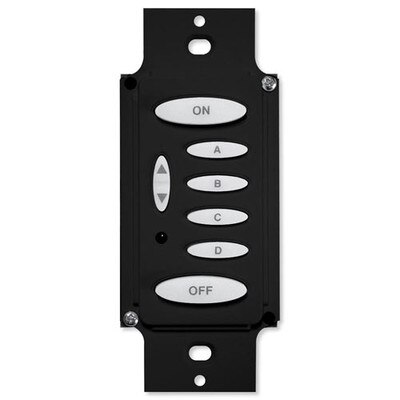

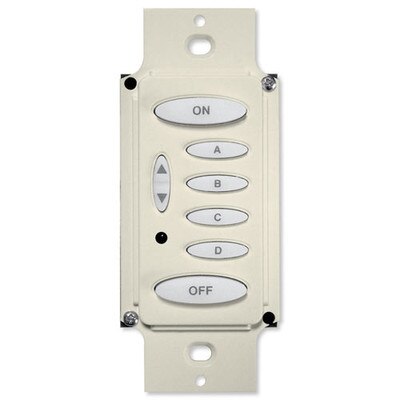

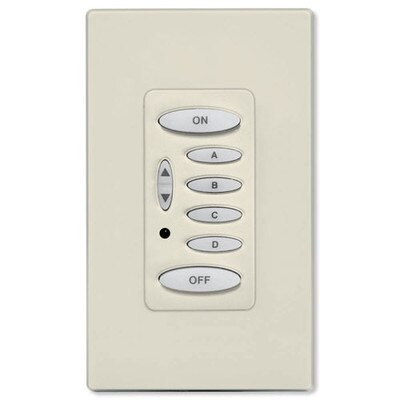

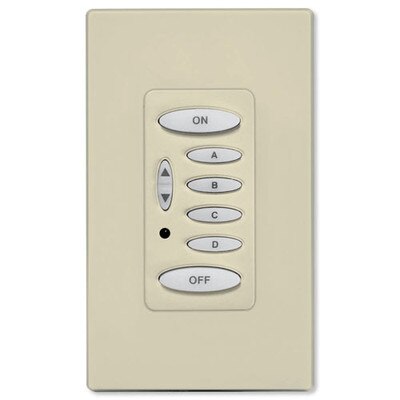

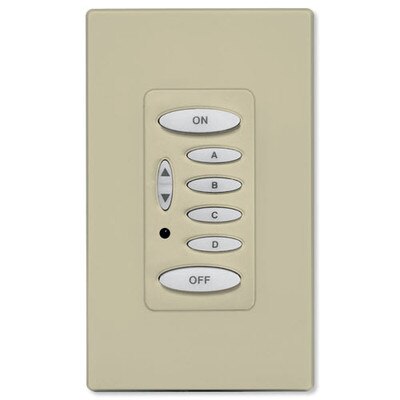

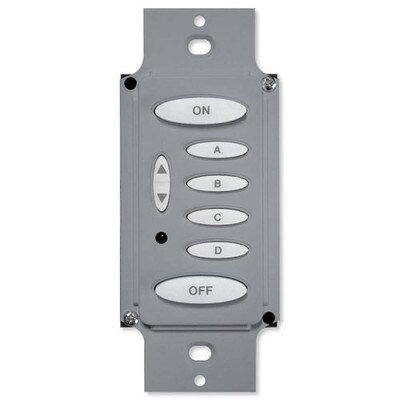

PCS PulseWorx UPB Wall Controller, Load Relay, 8A, 6 Button


Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Control A Connected Load Plus Other UPB Devices

With a built-in load relay, the PulseWorx UPB Keypad Controller (Load Relay, 8A, 6 Button) allows you to enable on/off control for one load up to 8A, and send commands to other UPB devices, including wall switches, dimmers, and keypad controllers. Control individual lights or entire scenes, and send messages to a central control unit.

  • Built-in relay for one load up to 8A
  • Controls other UPB devices
  • Pre-programmed with 7 light scenes
  • 16 function modes for each button
  • Fits in a single-gang box

This UPB Keypad Controller features six adjustable backlit buttons for easy viewing, day or night. Each button can be programmed to provide direct control over the load relay or remote control over other UPB devices or scenes. Buttons can be further customized when you choose one of 16 available function modes for each. You can even choose one of seven preset scenes to automatically create the perfect lighting levels.

NOTE: Wallplate not included.

PulseWorx Products Utilize UPB Technology

PulseWorx is a complete Lighting Control System that uses existing powerlines to give residential customers one-touch control over their home's lighting. PulseWorx products are designed to work within the current framework that already exists in the home, no new wires are required. PulseWorx products utilize UPB technology, providing the most reliable powerline controls available today.


  • Manufacturer Part #: KPLR-6
    • KPLR-6-A (Almond)
    • KPLR-6-B (Black)
    • KPLR-6-BR (Brown)
    • KPLR-6-G (Gray)
    • KPLR-6-I (Ivory)
    • KPLR-6-LA (Light Almond)
    • KPLR-6-W (White)


  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 6 Links/Scenes
  • Connections/Power Wire:
    • Two 16 AWG gauge 105 C insulation
    • Black – Hot/Line
    • White – Neutral
    • Red – Load
  • Relay Max. Load: 8.0A
  • Standby Power Consumption: 0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40 to 104° F
  • Humidity: 10 to 90 percent RH (non-condensing)
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508; UL-508-2010 CSA C22.2 #14-2010


  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: One per button; LED reflects status of Group
  • IR Receiver: Yes
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Setup Mode: Press and Hold ON/OFF Button for 3 Seconds- All LEDs will Flash


  • Button Type: 4 mechanical latching contact type buttons, 2 Momentary contact type buttons
  • Wire Nuts: 2 included
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: 4.1(H) x 1.7(W) x 1.8(D) inches
  • Weight: 5.6 ounces
  • Warranty: 5 years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.

UPStart UPB Software

This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
