PCS PulseWorx Lighting Control Panel

Convenient Load Center

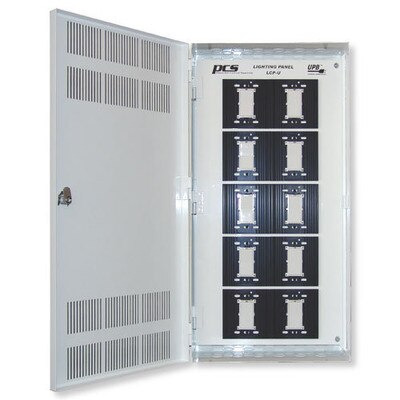

Centralize the location of your lighting and load control switches with the PCS PulseWorx Lighting Control Panel. This lighting control panel and enclosure provides a single convenient location for installing multiple lighting and load controllers from various manufacturers including PCS, Leviton, Lutron, GE, as well Wi-Fi or Z-Wave compatible switches. The LCPU panel can house multiple US standard size switches within 5 preconfigured 4-gang rows, up to 20 single-gang, ten 2-gang, or five 4-gang switches, dimmers, or keypads.

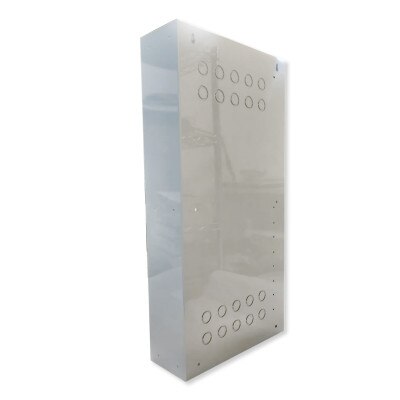

The LCPU is designed to be flush-mounted between two 16 inch center to center studs or surface-mounted on any flat surface. A matching one-inch bezel is included with each LCPU for finishing a flush mount installation. The panel's door includes a lock to restrict access to the installed switches and prevent tampering by unauthorized individuals.

Using LCP panels to centralize lighting controls offers several distinct advantages:

• Enclosed lighting and load control panel provides centralized location of multiple switches
• 5 preconfigured rows of 4-gang install locations

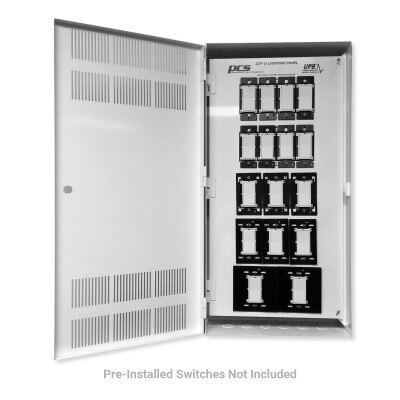

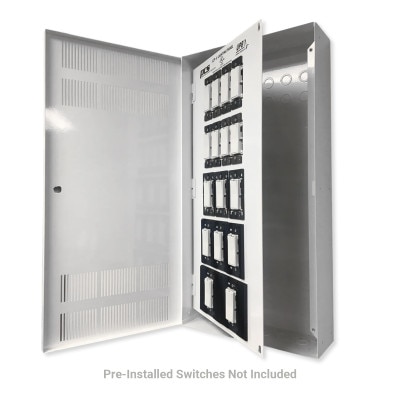

• Houses up to 20 single-gang, ten 2-gang, or five 4-gang switches
• Accommodates switches from various manufacturers including PCS, Leviton, GE, Lutron, and more
• Vented enclosure design dissipates the heat generated by high-power lighting controls

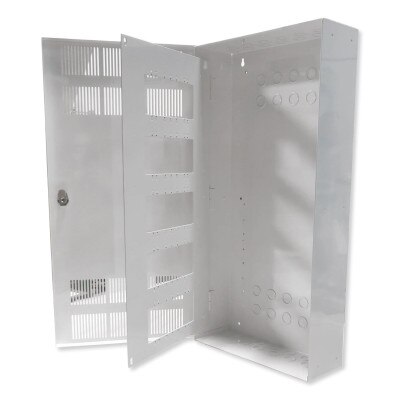

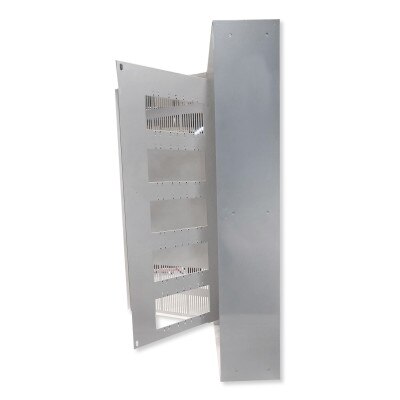

• Door and inner panel lift off hinges for easy wiring and installation

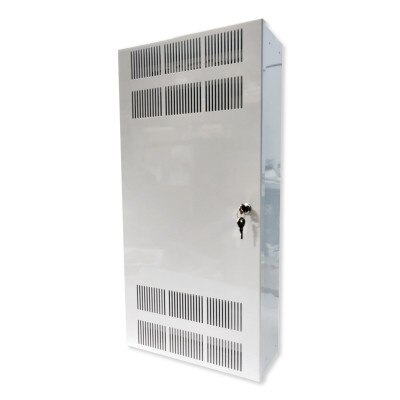

• Exterior locking door and two included keys is prevent tampering by unauthorized persons
• Rugged NEMA1 grade panel made of 16 GA steel with a white powder coat finish

IMPORTANT NOTE: This PulseWorx product is not available to ship outside the U.S.

UPB PulseWorx Lighting Control System

An integral part of a complete PulseWorx Lighting Control System, this device uses the patented UPB powerline communication technology (invented by PCS) to reliably communicate with any other UPB-compatible devices over the existing house electrical wires. No new wires are necessary, thus making PulseWorx perfect for retrofit situations. When initial configuration is complete, a single push of a button is all you need to activate any group of lights (or virtually anything else that connects to AC power wiring) throughout the house simultaneously.

• Manufacturer Part #: LCP-U
• Dimensions: 30.2" H x 14" W x 5" D
• Weight: 33 lbs
• Mounting: Flush or Surface
• Operating Temperature: -40 to 104°F (-40 to 40°C)
• Certifications: Safety tested for USA and Canada to ETL tested to UL508

UPStart UPB Software

This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
