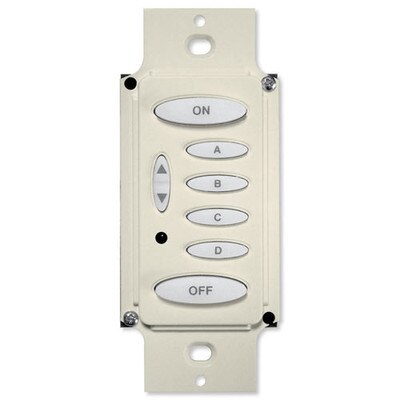

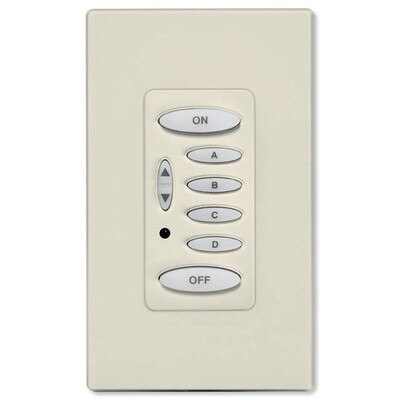

PCS PulseWorx UPB Wall Controller, 6 Button, Light Almond (Open Box)

IR Capable Scene Controller

The PCS UPB 6-Button Wall Controller is a high-quality home automation keypad that transmits and receives digital UPB commands and status over existing powerlines. The 6-Button Keypad can control single lights, trigger dramatic scenes, or send messages to a central controller.

Select from 16 commands to be transmitted when each pushbutton is tapped, double-tapped, held or released. This allows the KPC to remotely control other UPB-compatible devices and/or update feedback indicators (like LEDs).

This controller is a wire-in wall mounted device. Installation is simple – just mount in a wall box and connect to line and neutral.

• Programmable Button Modes
• Scene Control
• Easy Installation
• Perfect For Retrofit

NOTE: Wallplate not included.

UPB PulseWorx Lighting Control System

An integral part of a complete PulseWorx Lighting Control System, this device uses the patented UPB powerline communication technology (invented by PCS) to reliably communicate with any other UPB-compatible devices over the existing house electrical wires. No new wires are necessary, thus making PulseWorx perfect for retrofit situations. When initial configuration is complete, a single push of a button is all you need to activate any group of lights (or virtually anything else that connects to AC power wiring) throughout the house simultaneously.

• Manufacturer Part #: KPCW-6-LA
• UPC: 811976001751
• Color: Light Almond
• Size: 1-Gang
• Warranty: 5 Year

»PCS PulseWorx KPC-6 Wall Controller Firmware Specification (.pdf)
»PCS PulseWorx KPC-6 Wall Controller User Guide (.pdf)
»PCS PulseWorx KPC-6 Wall Controller Configuration Guide (.pdf)
»PCS PulseWorx KPC-6 Wall Controller Manual (.pdf)

UPStart UPB Software

This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
