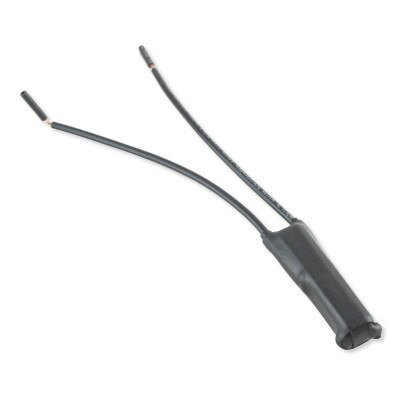

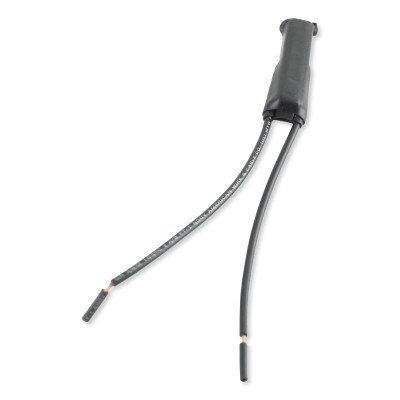

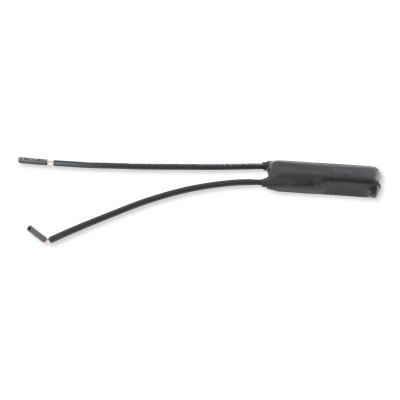

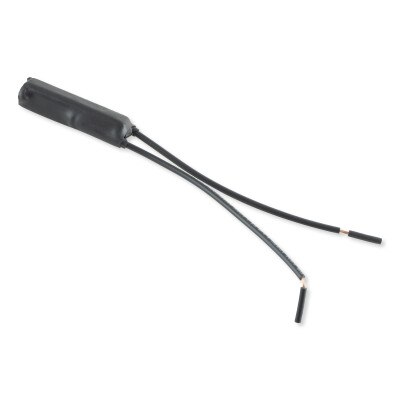

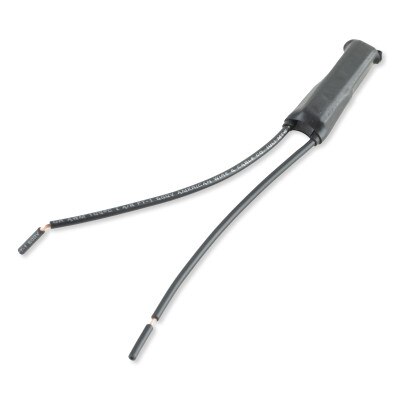

PCS 10K Load Resistor for LED Lighting

SKU: PCILR10K

Order now and we'll ship same business day (if ordered before 3 pm PST).

$16.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Solve LED Performance Issues

If your LED fixtures or bulbs have issues with turning off all the way or flickering at specific dim levels, use the PCS 10K Load Resistor for LED Lighting to solve this problem. The LED load light resistor wires in parallel with the LED load between the switch load wire (RED) and the neutral wire (WHITE). Because the LED light resistor dissipates only 1.4W at 100 percent brightness, its heat generation is minimal enough that it can be placed directly behind a dimmer switch or right at the load/fixture.

  • LED resistor eliminates problems with LEDs flickering or not turning off
  • Dissipates only 1.4W at 100 percent brightness
  • At lower brightness levels, dissipates even less than 1.4W
  • Can install load resistor behind dimmer switch or at load

NOTE: The LED load light resistor must be wired in parallel, not in series. Installation must be carried out by a qualified electrician only. The circuit breaker or WS1DL must be turned off during installation. Installation of this LED load resistor must be carried out in accordance with all applicable codes and requirements, including, but not limited to, the National Electrical Code (NEC).

PulseWorx Products Utilize UPB Technology

PulseWorx is a complete Lighting Control System that uses existing powerlines to give residential customers one-touch control over their home's lighting. PulseWorx products are designed to work within the current framework that already exists in the home, no new wires are required. PulseWorx products utilize UPB technology, providing the most reliable powerline controls available today.

Specifications

  • Manufacturer Part #: ILR-10K
  • Power: 120VAC
  • Resistance: 10K ohms
  • Dissipation: 1.4W at 100 percent brightness
  • Warranty: 5 Years

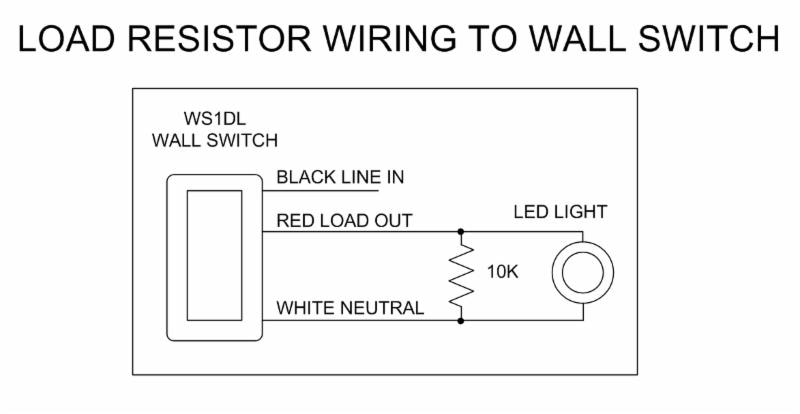

Wiring Diagram
