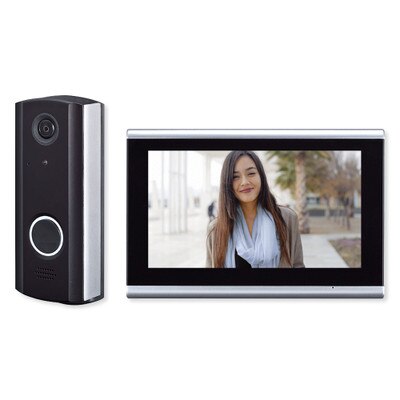

Optex iVision+ Connect Door Station & Mobile Station Bundle

Complete Wireless Video Door Intercom System

Answer your door remotely and grant easy access to visitors with the Optex iVision+ Connect Door Station & Mobile Station Bundle. This complete wireless video intercom system includes a door station and mobile station. The door station lets you speak with visitors remotely while watching them in real-time on the indoor mobile station. Additionally, the system can easily work with smartphones and tablets via the OPTEX Vision app (iOS or Android), allowing you to share and grant access control to others in your network.

• Includes 1 door station and 1 mobile station
• Expandable by adding additional mobile stations and connected smartphones and tablets via the OPTEX Vision app
• Record video locally with pre-installed MicroSD card or with cloud services (Google Drive or Dropbox)
• Functions without an ISP connection (2.4GHz router required, sold separately)
• Door unlocking functionality with Door Interface Unit (sold separately, part# IVPC-DI)

Optex Door Station

The Optex iVision+ Connect Door Station can be battery powered or hardwired. It features HD 720p resolution, night vision, and a wide lens (H 135°, V 75°) for quality live or recorded video. It has a pre-installed 8GB microSD card for local storage, provides full duplex conversations with echo cancellation, and can be used both in indoor or outdoor environments (water resistant IPX5 rated).

Optex Mobile Station

The Optex iVision+ Connect Mobile Station can be battery powered or hardwired. It features a 7-inch LCD screen, full duplex echo cancellation functionality, and a microSD card slot for local video recording (card not included). It also comes with a desktop stand and can be wall-mounted with the Optex Wall Mount Bracket (part# IVPC-WMB, sold separately).

Optex iVision+ Connect Wireless Video Intercom System

When a visitor pushes the doorbell button on the Optex Outdoor Station, the indoor Optex Mobile Station and any connected smartphone or tablet will immediately notify you that a visitor is calling from the door station's location. You can then answer and view your visitor from any indoor mobile station or connected mobile device.

The Optex iVision+ Connect Wireless Video Intercom System can work without an ISP connection (standard 2.4 GHz router required, sold separately) and can easily be expandable with the addition of multiple door stations, tablets, and smartphones. You can also install the Door Interface Unit (part# IVPC-DI, sold separately) to allow unlocking functionality (electric strike or mag lock) and provide selectable chime tones and volume control.

Besides giving you the ability to customize settings and functions of the system, the OPTEX Vision app will allow you and others to use smartphones or tablets to view, monitor, and share within your network. The OPTEX Vision App is free to install and works with iOS or Android devices. Plus, videos recorded by a door station can be stored in the cloud via Google Drive, Dropbox, or other cloud storage services, and without monthly fees or contracts. The mobile station also has a pre-installed microSD card (8 GB) for local storage.

Contents

• Door Station
• Mobile Station
• Installation Accessories
• Manual

Notes

• The Optex iVision+ Connect Wireless Video Intercom System can work without an Internet Service Provider (ISP), but requires a standard 2.4GHz router (sold separately).
• Remote unlocking functionality can be added with the Door Interface Unit (sold separately, part# IVPC-DI).
• To add smartphones and tablets, the OPTEX Vision app (iOS or Android) must be installed on mobile devices.
• A maximum of 4 Door Interface units per Door Station can be supported.
• A maximum of 6 Door Stations units per Mobile Station can be supported.

Optex: The Quality Products People Expect

Optex specializes in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.

• Manufacturer Part #: IVPC-DM
• UPC: 788924502588

Door Station (IVPC-DS)

• Video Format: H.264 720p HD/VGA
• Recording File Format: MP4
• Memory Card (included): MicroSD card; UHS-I 4 to 32 GB
• View Angle: H135°/ V75°
• Audio Direction: Two ways (Full duplex)
• Wi-Fi:
• Network Connectivity: Wi-Fi 802.11 b/g/n
• Frequency: 2.4 GHz
• Sub 1 G:
• Frequency: 916 MHz
• Power: 10 to 24 V AC/DC or rechargeable battery (included)
• Battery Life: 2 months/1 year (battery saving OFF/ON) at 25°C
• Battery Charging Time: 10 h with 5 V DC, 1 A supply
• Night Vision: IR lighting LED
• Operation Temperature: -4°F to 122°F (-20°C to 50°C)
• Operating Humidity: <90% (no condensation)
• IP Rate: IPX5

Mobile Station (IVPS-MS)

• Audio Direction: Two ways (Full Duplex)
• Wi-Fi:
• Network Connectivity: Wi-Fi 802.11 b/g/n
• Frequency: 2.4 GHz
• Power: AC adapter 5 V/1.5 A
• Battery Life: Approximate 8 hours in standby
• Charging Time: 10 hours by included AC/DC adapter
• LCD Display: 7-inch Touch LCD 1,024 x 600
• Operation Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: <90% (no condensation)

»Optex iVision+ Connect Door/Monitor Station Installation Manual (.pdf)
»Optex iVision+ Connect System User Manual (.pdf)
