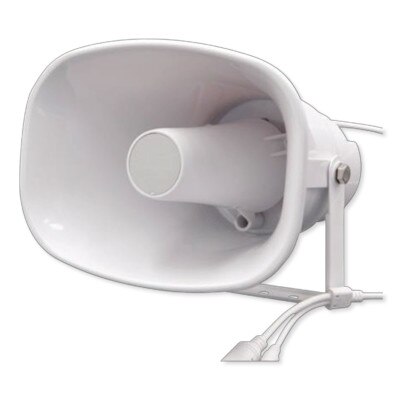

Optex CHeKT 30W IP Horn Outdoor Speaker
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Broadcast Alarms & Messages Clearly
Broadcast clear announcements on your property with the Optex CHeKT 30W IP Horn Outdoor Speaker. Using up to 120 decibels, this IP Horn Speaker is the ideal solution for broadcasting announcements or pre-recorded messages during an emergency situation. It features the 48K OPUS Audio Codec for excellent sound quality, supports HTTP API for alarm in transmit, comes with a built-in 30W amplifier, and is constructed using durable ABS material, which is IP67-rated as waterproof. This speaker is also compatible with IP Cameras (VMS via ONVIF) and VolP, SIP devices (IP PBX, IP Phone) via SAP; plus, installation is easy because it connects to your security network with a single LAN cable.
- Crystal clear announcements with up to 120 decibels
- Ideal for alarm notification or pre-recorded messages
- Outputs maximum of 30 Watts nominal
- Weather-resistant (IP67-rated) for indoor or outdoor use
- Quick installation – connects to security network with a single LAN cable
Contents
- 30W IP Horn Outdoor Speaker
- Manual
Optex: The Quality Products People Expect
Optex specializes in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.
Specifications
- Manufacturer Part #: CKIPS30W
- Codec: OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
- Max SPL: 120dB
- Frequency Response: 350Hz to 8KHz
- Frequency Range:
- 500-2KHZ ± 10dB
- 400-12KHZ ± 20dB
- Harmonic Distortion: 0.1@1kHz
- Signal to Noise Ratio: 91dB
- Security: Password protection, IP address filtering, Digest authentication, User access log, firewall
- Network Protocol: SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
- Network Interface: 10/100 Base-TX, RJ45
- VoIP: Support for SIP protocol for integration with VoIP systems, integrated with SIP/PBX. 2 SIP Accounts, SIP Direct IP Call, RTP Multicast Codec: OPUS, MP3, G.722, PCMU, PCMA
- Amplifier Description: Built-in 30W Amplifier
- Alarm Output: 1ch, When receiving a switch alarm, it can play a ringtone or a custom sound
- Operating Temperature: -30°C to +60°C
- Operating Humidity: 5% to 85%
- Material: ABS (IP67 water-proof)
- Rate Power: 30W
- Power Supply: POE or DC12V~24V
- Installation: Wall mounted
- Dimensions: 11 x 8 x 8 inches (285 x 205 x 290 mm)
- Net Weight: 4.4lbs. (2 KG)
- Languages: English
- Warranty: 2 Year
