On-Q/Legrand Stackable Enclosure with Knock-Outs

SKU: OQENxx85

Please Select Option To View Availability

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$40.90 to $128.44

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Stack & Connect Systems

Stack different structured wiring systems and connect them through optional openings with the On-Q/Legrand Stackable Enclosure with Knock-Outs. This unique enclosure features five knock-outs at the top, allowing you to run cables from one enclosure to the next. It’s perfect for Fiber to the Home (FTTH) applications, because it fits ONTs measuring 3.6 inches or less in depth.

  • Stackable design allows for connection of two systems
  • Includes five openings with knockouts at the top
  • Suitable for Fiber to the Home (FTTH) applications
  • Fits ONTs measuring 3.6 inches or less in depth

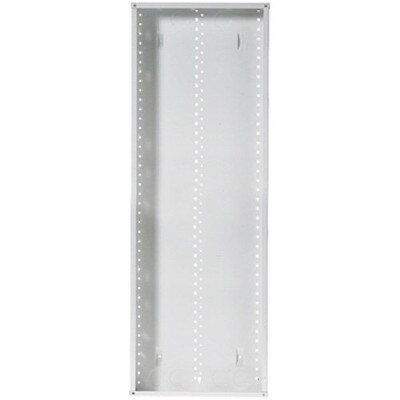

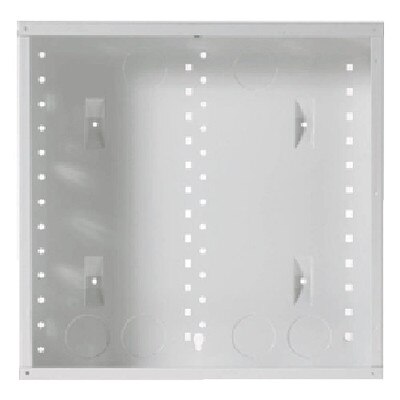

Available Sizes: 14", 20", 28", 42"

The enclosure comes in four different sizes. The two larger sizes (28" and 42") can be extended by 2.5 inches in depth by adding an enclosure extender (sold separately).

Note: Cover not included.

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

Specifications

  • Manufacturer Part #: OQENxx85
  • Color: Glossy White
  • Finish: Powder Coat
  • Type: Enclosure
  • Humidity: 90 percent relative (non-condensing)
  • Material: CRS
  • Installation Location: In-Wall
  • Mounting: Surface or Flush
  • Operating Temperature: 32° to 122° F (0° to 50° C)
  • Dimensions:
    • 14": 14.2(W) x 14.1(H) x 3.7(D) inches (36.1 x 35.8 x 9.4 cm)
    • 20": 14.3(W) x 20.1(H) x 3.7(D) inches (36.3 x 51.1 x 9.4 cm)
    • 28": 14.3(W) x 28.1(H) x 3.7(D) inches (36.3 x 71.4 x 9.4 cm)
    • 42": 14.3(W) x 42.1(H) x 3.7(D) inches (36.3 x 106.9 x 9.4 cm)
  • Thickness: 20 Gauge
  • cULus: Yes
  • UN SPS C: 43223306

Downloads

»On-Q/Legrand ENxx85 Enclosures with Knockouts Installation Instructions (.pdf)
