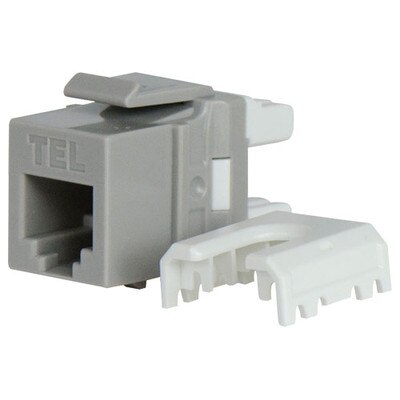

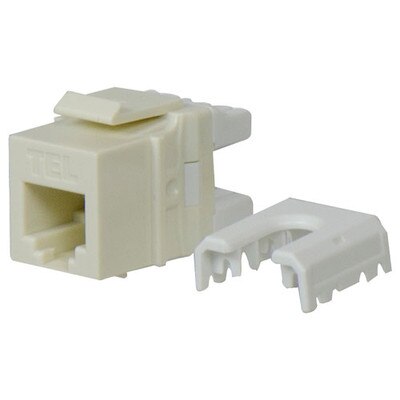

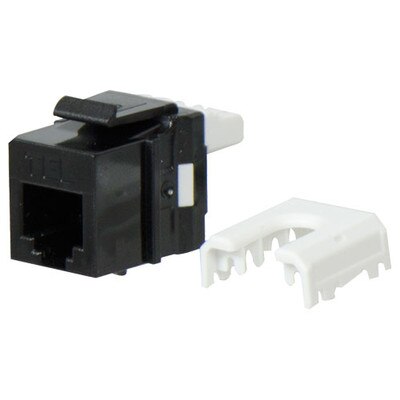

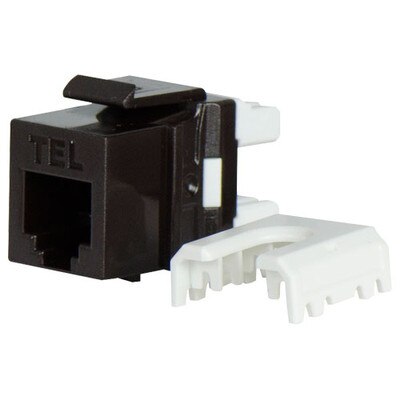

On-Q/Legrand Quick Connect RJ25 Telephone Keystone Snap-In Connector
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Connect Up to 3 Phone Lines
The On-Q/Legrand Quick Connect RJ25 6-Position, 6-Conductor Telephone Keystone Connector supports up to three telephone lines and accepts an RJ45 plug. The connector features gold-plated contacts and QuickConnect termination for fast and easy installation. As a keystone product, the connector fits into keystone wallplates, patch panels, and other keystone devices.
- Supports up to 3 telephone lines
- Contacts plated with 50 microinches of gold
- QuickConnect termination for fast installation
- Compliant with FCC Part 68 requirements
- Fits into keystone patch panels and other keystone products
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
- Manufacturer Part #: WP3473
- Equipment Type: Quick Connect RJ25 6-Position, 6-Conductor Telephone Keystone Insert
- Performance Category: Cat 3
- Termination: 6P6C
- Connection Type: RJ25 Female
- Material: High Impact Flame Retardant Plastic; ABS FR15U
- Operating Temperature: 14° to 140°F (-10° to 60°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Dimensions: 4.0(W) x 6.0(H) x 0.7(L) inches
- Supported Standards: CSA, cULus, RoHS
- UL Flammability Rating: UL 94V-0
