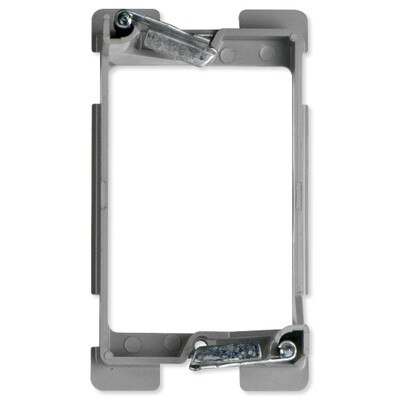

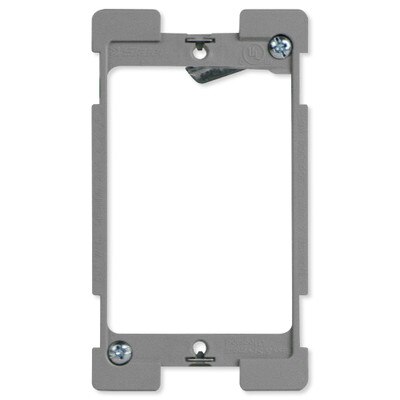

On-Q/Legrand Low-Voltage Swing Bracket with Quick/Click

Quick Installation with Just One Tap

The On-Q/Legrand Low-Voltage Swing Bracket with Quick/Click is designed for swift and secure low-voltage device mounting that is built to last. The Swing Bracket's spacious open top and back design makes cable and wire management easy, and the bracket suits single- or multi-gang installations, such as Keystone wallplates or keypads. On-Q/Legrand's trademark Quick/Click design allows for near-instant and secure installation. Just one tap secures a device to the bracket.

• Speed up installation time with Quick/Click® technology, just one tap to secure devices
• Rigid plastic design retains shape for ease of alignment during installation
• Reliable, metallic wings securely clamp bracket in place
• Spacious opening accommodates large devices and facilitates wiring process

Equipped with the Quick/Click feature: On-Q/Legrand brackets with Quick/Click design allow devices to be mounted with a single tap for secure mounting and faster installation. Quick/Click brackets can be fitted into new or retrofit applications.

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Manufacturer Part #:
• 1-Gang: SLV1W

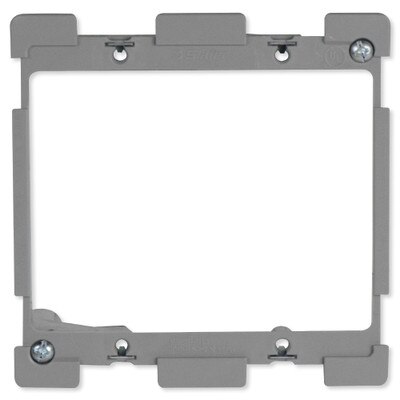

• 2-Gang: SLV2W
• 3-Gang: SLV3W
• Color: Gray
• Material: Cast Alloy
• Operating Temperature: -40 to 140 degrees Fahrenheit (-40 to 60 degrees Celsius)
• Dimensions:
• 1 Gang: 4.2 (H) x 2.38 (W) x 1.91 (D) inches
• 2 Gang: 4.2 (H) x 4.2 (W) x 1.91 (D) inches
• 3 Gang: 4.2 (H) x 6.1 (W) x 1.91 (D) inches
• Standards and Certifications: RoHS, UL Standard

»On-Q/Legrand Low Voltage Brackets Spec Sheet (.pdf)
