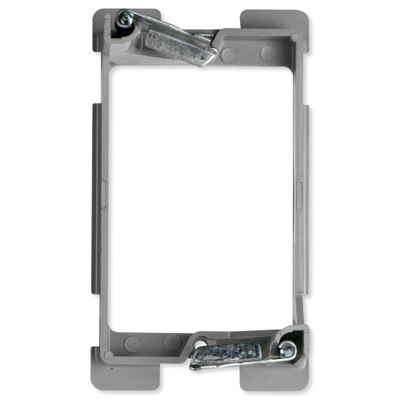

On-Q/Legrand Low-Voltage Swing Bracket for Retrofit

Retrofit Low-Voltage Devices Into Existing Construction

Designed for single- or multi-gang openings in retrofit applications, the On-Q/Legrand Low-Voltage Swing Bracket for Retrofit fits into existing construction. The bracket is ideal for installing low voltage Keystone wallplate outlets and volume controls on metal studs. It features an open back to support large devices, and metallic swing brackets to clamp in place for quick and easy installations. The bracket is constructed from rigid, shape-retaining plastic and its integrated cable management system facilitates cable connections for quick and easy wiring.

• Rigid plastic design retains shape for ease of alignment during installation
• Reliable, metallic wings securely clamp bracket in place
• Spacious opening accommodates large devices and facilitates wiring process

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Manufacturer Part #:

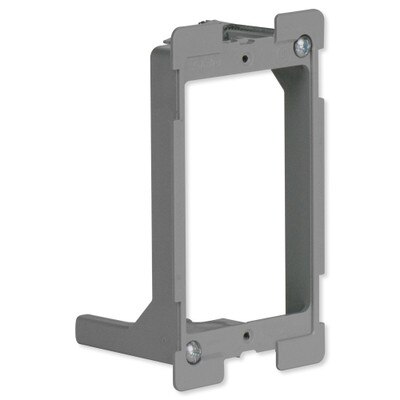

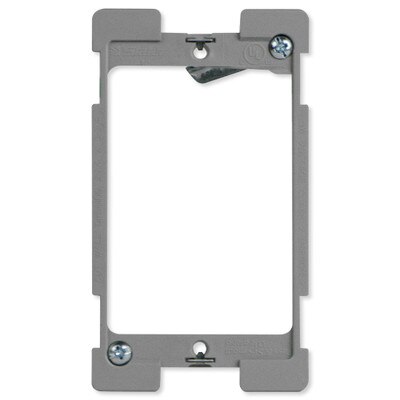

• 1-Gang: PLV1W

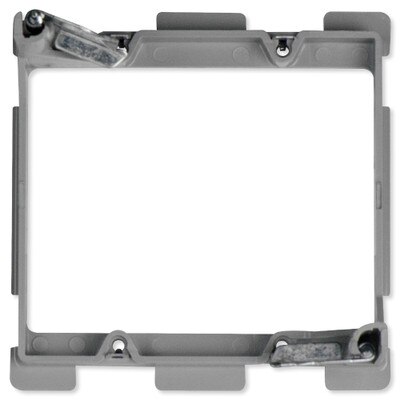

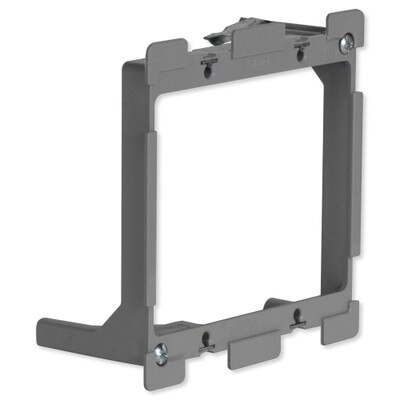

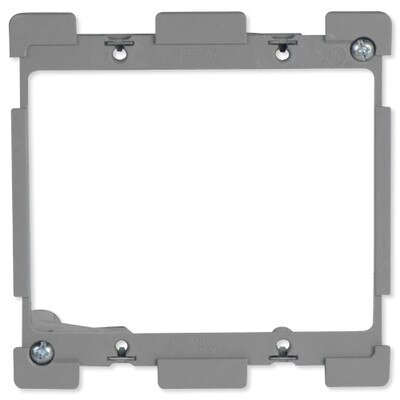

• 2-Gang: PLV2W

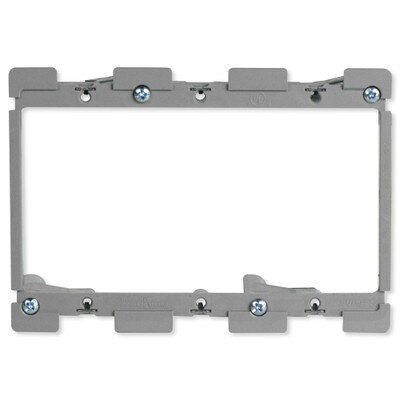

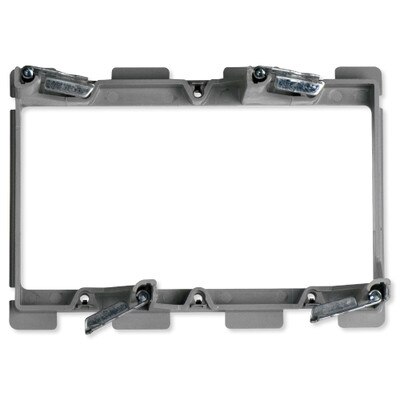

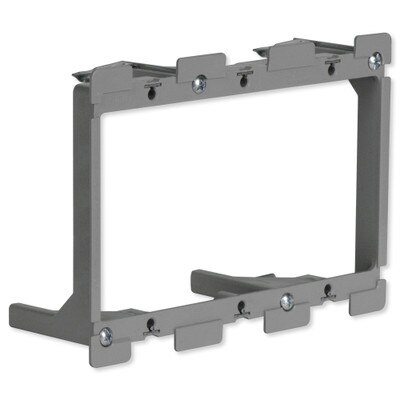

• 3-Gang: PLV3W
• Color: Gray
• Material: Cast Alloy
• Operating Temperature: -40 to 140 degrees Fahrenheit (-40 to 60 degrees Celsius)
• Dimensions:
• 1 Gang: 4.2 (H) x 2.38 (W) x 1.91 (D) inches
• 2 Gang: 4.2 (H) x 4.2 (W) x 1.91 (D) inches
• 3 Gang: 4.2 (H) x 6.1 (W) x 1.91 (D) inches
• Standards and Certifications: RoHS, UL Standard

»On-Q/Legrand Low Voltage Brackets Spec Sheet (.pdf)
