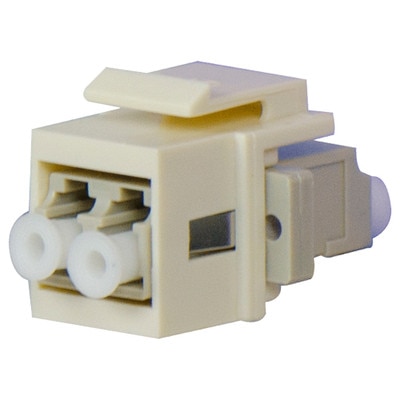

On-Q/Legrand LC Multimode Fiber Optic Keystone Snap-In Connector
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Combine Two Fiber Optic Cables
By combining two LC multimode fiber female connectors, the On-Q/Legrand LC Multimode Fiber Keystone Coupler Connector allows you to integrate fiber optic cable into your structured wiring system. The coupler features a feed-through design with phosphor bronze sleeves for quality performance. As a keystone product, it fits into keystone wallplates, patch panels, and other keystone devices.
- Combines two fiber optic cables with LC multimode female connectors
- Feed-through design with phosphor bronze sleeves
- Fits into keystone wallplates and other keystone products
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
- Manufacturer Part #: WP1210
- Finish: Smooth
- Equipment Type: Multimode Fiber Optic Connector
- Service Life: 500 matings
- Housing Material: Plastic ABS UL94VO
- Connection Method: Phosphor Bronze sleeve
- Typical Insertion Loss: Multimode: 0.20~0.30@IL avg (dB @ 1310nm)
- Typical Return Loss: ≥55dB (typical)
- Humidity: 10 to 90 percent, RH (non-condensing)
- Operating Temperature: 14° to 140°F (-10° to 60°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Supported Standards: UL, cULus, RoHS
