On-Q/Legrand Dual-Purpose In-Wall Enclosure with 5-in Mounting Plate, 9"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Protect and Conceal Crucial Cables or Components

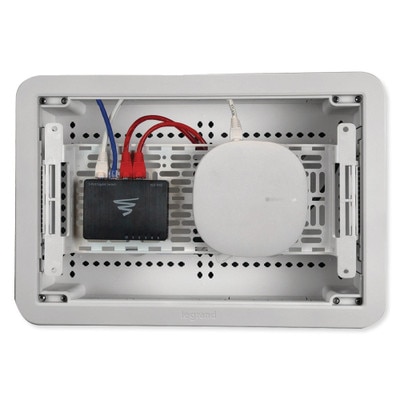

The On-Q/Legrand 9-in Dual-Purpose In-Wall Enclosure is engineered to provide storage of structured wiring and AV components. The ENP0905-NA-V1 is constructed of Wi-Fi transparent material to manage wireless components and AV devices at point-of-use locations, like directly behind a TV or other media centers. It can also be used for structured wiring purposes, as smaller-sized options in the existing line of On-Q enhanced structured wiring enclosures. The ENP0905-NA-V1 is compatible with devices like Apple TV, Roku, Amazon Fire TV, network switches, 3rd party structured wiring components and more. Includes a 5-in elevated mounting plate, cover, trim ring and drywall clips, allowing for both new construction and retrofit installations.
- Designed for in-wall storage and distribution of structured wiring and AV components

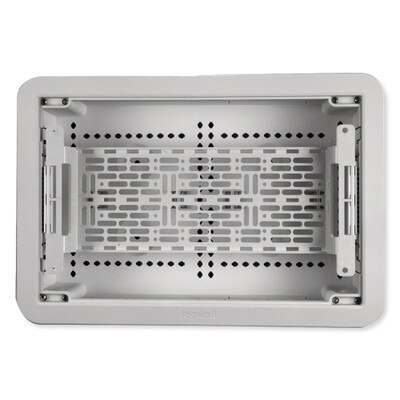

- Includes removable mounting plate that features 1.5-in of elevation to accommodate larger devices and frees up space in the enclosure

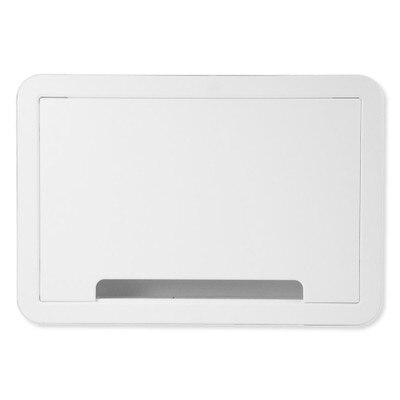

- Tool-free cover is low profile and designed to snap into place providing a "flush" appearance to wall surface

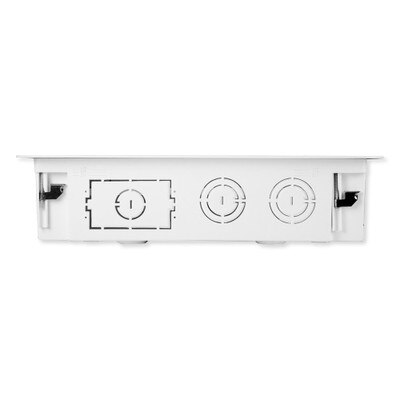

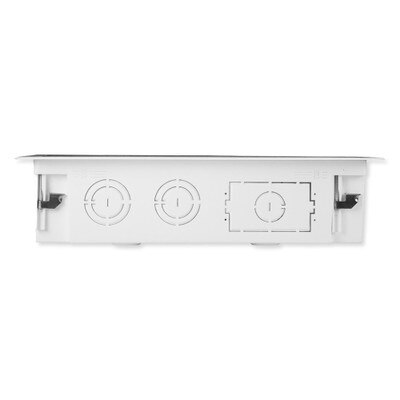

- Features (2) AC knockouts to accommodate a single gang junction box to power devices in enclosure and a cable passthrough cover for outside cable connections
- Universal mounting grid maximizes compatibility with 3rd party devices without additional mounting brackets
- Features drywall clips to allow both retrofit and new construction installations
- UL Listed and constructed of Wi-Fi transparent ABS plastic to ensure uninterrupted performance of wireless devices
Contents
- In-Wall Enclosure
- Cover
- Elevated Mounting Plate
- Trim Ring
- Drywall Clips
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
- Manufacturer Part #: ENP0905-NA-V1
- UPC: 804428434139
- Material: ABS Plastic
- Color: White
- Compatibility: Paintable with Rust-Oleum paint for plastic or equivalent
- Thickness: 0.1 in
- Frame: Injection-molded plastic
- Operating Temperature: 32° to 122° F (0° to 50° C)
- Operating Humidity (non-condensing): 0 to 93%
- Dimensions: 15.9 (W) x 10.87 (H) x 4.09 (D) inches (404 x 276 x 104 mm)
- Certifications: RoHS
Downloads
»On-Q/Legrand Dual-Purpose In-Wall Enclosure Brochure (.pdf)
»On-Q/Legrand ENP0905-NA-V1 9-in Dual-Purpose In-Wall Enclosure with 5-in Mounting Plate Spec Sheet (.pdf)
»On-Q/Legrand In-Wall Enclosure for Recessed AV Component Storage and Media Distribution Installation Manual (.pdf)
»On-Q/Legrand 9 In. Dual-Purpose In-Wall Enclosure Technical Drawing (.pdf)
»On-Q/Legrand In-Wall Enclosure for Recessed AV Component Storage and Media Distribution Diagram (.pdf)
