On-Q/Legrand 12-Port Cat6 Network Interface Module
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Switch Between Data & Voice Applications

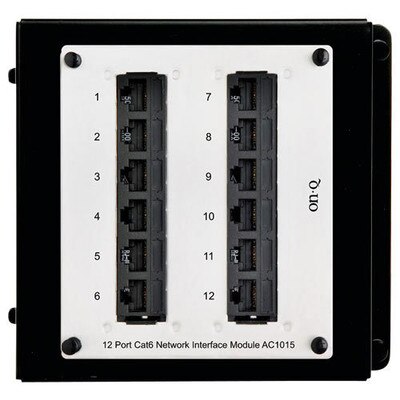

The On-Q/Legrand Cat6 Network Interface Module, 12 Port allows you to conveniently change an outlet from voice to data or from data to voice. The module features 12 numbered RJ45 ports, along with color-coded labeling for easy T568A termination. It offers an ideal solution for reconfiguring a home network with patch panel simplicity. The module includes a two-bay bracket for mounting in an enclosure.
- RJ45 ports labeled 1 through 12
- Meets Cat6 specifications
- Color-coded for easy T568A termination
- Mounting bracket included
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
- Cable Type: Solid conductor Cat5e or Cat6
- Footprint: Double Bay
- Number Of Ports: 12
- Performance Category: Cat6
- Termination: IDC on back of panel
- Bracket Required: Included
- Humidity: Max. 93 percent non-condensing
- LAN Ports: 12
- Mounting: Plungers/Grommets (2 on bracket, 4 on module)
- Dimensions: 5.9(H) x 6.42(W) x 1.7(D) inches
