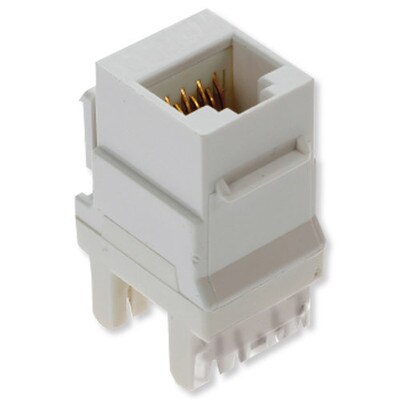

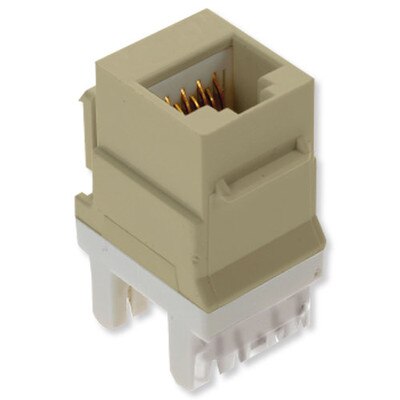

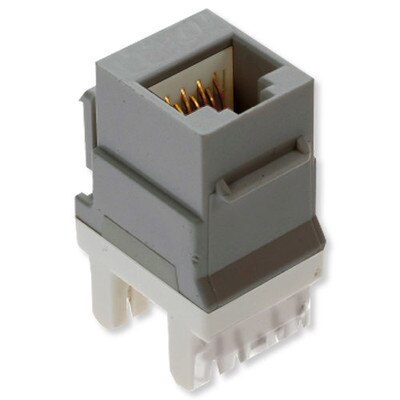

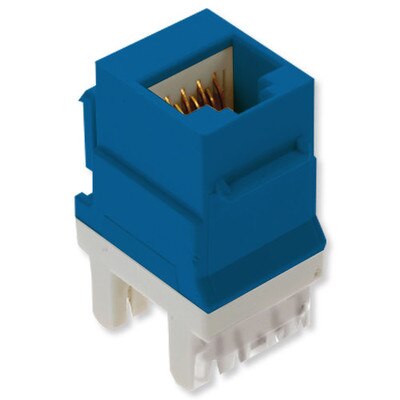

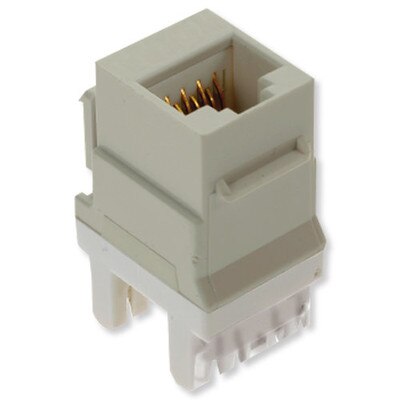

On-Q/Legrand Cat6 RJ45 Keystone Snap-In Connector

Creates An Ethernet Port

The On-Q/Legrand Cat6 RJ45 Keystone Connector is a high-performance insert that creates an Ethernet port for any keystone wall plate. Its vertical design allows easy punchdown termination and the jack housing is made of high-impact, flame resistant plastic for long-term reliability.

• Vertical design for easy punchdown termination
• Insertion and extraction life is 750 Cycles Min
• Jack housing made of high-impact, flame resistant plastic
• Meets Category 6 described in TIA/EIA-568-B.2

This connector is designed for Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs. Rear retention caps ensure secure wire termination, and the spring wire is plated with phosphor bronze alloy, including 50 micro-inches of gold over 100 micro-inches of nickel. Each connector includes T658A and T568B wiring labels.

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Mod Jack Wiring: T568A or T568B
• Number Of Ports: 1
• Pair Count: 4
• Termination: IDC Wire Gauge: 22-24 AWG
• Flammability Rating: 94 V-0
• Humidity: Max. 93 percent non-condensing
• Material: High Impact Plastic
• Mounting: Keystone
• Operating Temperature: 14 to 140 degrees F
• Storage Temperature: Neg 40 to 158 degrees F
• Dimensions: 0.87(H) x 1.28(L) x 0.64(W) inches
• Weight: 0.0255 pounds
• cU Lus: Yes
• UL Listing: ANSI/UL 1863; CAN/CSA-C22.2 No. 182.4-1990
