On-Q/Legrand 8" MDU Enclosure Kit with Cat6 Data Kit
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Complete Kit for Phone, Video, & Data Networking

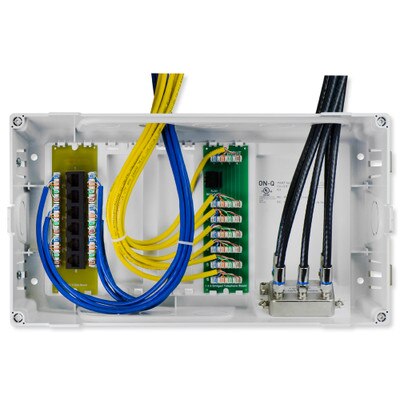

Quickly set up phone, video, and data networking distribution in a small home or multi-dwelling unit (MDU) with the On-Q/Legrand 8" MDU Enclosure Kit with Cat6 Data Kit. Designed for easy install and replication, the complete kit comes with a plastic, cost-effective structured wiring enclosure with a pre-installed 6-way phone module, 4-way coax splitter, and a 6-Port Cat6 data board. This allows distribution of one phone line to six locations, one coax video signal to four locations, and up to six Ethernet drops using Cat6 cable. The phone module also features an RJ31X line seizure port for security applications.
- Pre-configured structured wiring for a small home or MDU
- Distributes 1 phone line to 6 locations
- Distributes 1 coax video signal to 4 locations
- Supports up to 6 Ethernet drops
- Enclosure either flush- or surface-mounts
- Provides room for 2 additional modules
Installation Details
The enclosure supports either flush- or surface-mounting. When flush mounting, the installer can use integrated mounting tabs and drywall depth indicators to achieve a highly professional installation. Screws are included for mounting along with optional lock hardware to secure the snap-on cover against unauthorized access. Knockouts with screwdriver holes also facilitate quick removal.
Contents

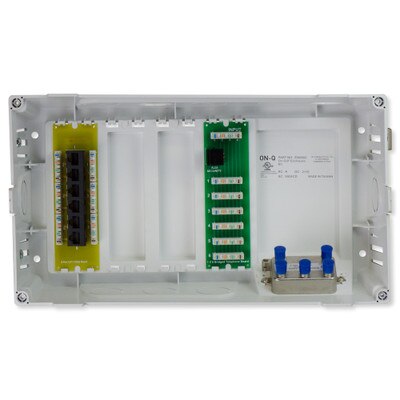

- MDU Enclosure w/Snap-On Cover (EN0800)
- 6-Port Cat6 Data Board (AC0606)
- 6-Way Phone Module (TM0106)
- 4-Way Coax Splitter (VM0204)
- Lock Hardware
- (4) Self-Tapping Screws
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
Manufacturer Part #: EN0804
MDU Enclosure (EN0800)
- Color: White
- Material: ABS molded plastic
- Dimensions: 8.02(H) x 14.38(W) x 3.71(D) inches (203.7 x 365.2 x 94.2 mm)
- Approvals: cULus Listed for communications equipment
6-Port Cat6 Data Board (AC0606)
- Cable Type: Full Duplex Gigabit
- Number of Ports: 6
- Connection Type: RJ45/IDC
- Type: Low Voltage, Data Network Component
- Special Features: Punch down style termination, 6-Port, RJ45 Data Ports
- Humidity: 10% - 90% Relative Humidity (non-condensing)
- Jack Connectors: Cat6 RJ45
- Material: Plastic
- Mounting: Custom MDU enclosure mountable
- Operating Temperature: -4° to 167° F (-20° to 75° C)
- Power Requirements: None
- Supported Standards: ANSI/TIA/EIA-568-A
- Equipment Type: Full Duplex Ethernet
- Certifications: RoHS
1x6 Telephone Board With RJ31X (TM0106)
- Number of Ports: 6
- Type: LV Telephone Distribution Module
- Special Features: RJ31X Line seizure port, 110 Punchdown termination
- Style: Single-Bay Module
- Mounting: Snap-in Module
- Rack Units: Custom MDU enclosure mountable
- Dimensions: 5.875(W) x 2.875(H) x 1(D) inches (149 x 73 x 25 mm)
- Certifications: RoHS
4-Way Vertical Coax Splitter, 2 GHz (VM0204)
- Finish: Nickel-Plated with Tin Sealed
- Number of Ports: 4
- Connection Type: F-Connector, female
- Type: Low Voltage, Coax Splitter, Single-Bay
- Special Features: 4-way Vertical Splitter
- Style: Single-Bay Module
- Frequency: Bandwidth: 1000~2050 MHz
- Insertion Loss: 10.5 dB max
- Return Loss Input: 15 dB min
- Return Loss Output: 12 dB min
- Dimensions: 2.91(W) x 1.62(H) x 1.22(D) inches (74 x 41 x 31 mm)
- Certifications: RoHS
