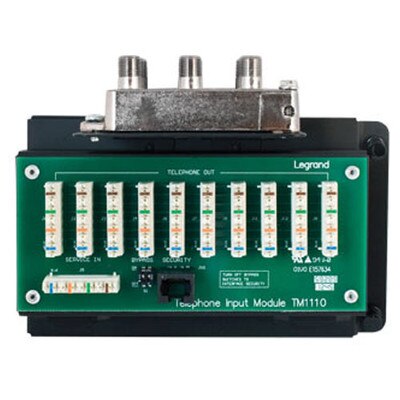

On-Q/Legrand 10x8 Phone & Video Combo Module, 110 with RJ31X (1.675Ghz)

Distributes 1.675 GHz Video To 8 Locations

Enable high-speed coax networking in a structured wiring system with the On-Q/Legrand 10x8 Phone & Video Combo Module. This combo module distributes up to four incoming telephone lines (RJ45) to 10 locations, and a 1.675 GHz passive digital HDTV video signal to eight locations. The Antronix video splitter is optimized for the MoCA standard, and compatible with existing networks such as VoIP and DOCSIS 3.0.

• Distributes 4 telephone lines to 10 locations
• Splits 1.675 GHz digital video signal for 8 locations
• RJ31X line seizure port for security
• Ring wave surge protection (6kV) on video ports
• Mounting bracket included

The 10x8 Phone & Video Combo Module meets the current and future requirements of Internet-savvy homeowners. High-speed Internet combined with cable TV signals provides an easy solution to advanced video distribution.

The video splitter exceeds performance requirements specified by the top cable service providers, and its nickel-plated housing offers superior corrosion resistance, even in harsh outdoor environments.

The module comes with a uniquely designed mounting bracket that features a detachable platform for the coax splitter. This provides easy access to all termination ports during installation.

Contents

• Combo Module
• Mounting Bracket

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Manufacturer Part #: CO2110-V1
• Cable Type: Cat 5/5e/6, Coaxial
• Color: Black
• Connection Type: 110 Punchdown, F Connector, RJ31X
• Connection Method: IDC(10), F Connector(8), RJ31X(1)
• Frequency: 5-1675 MHz
• Jack Connectors: RJ45
• Material: 18 Gauge Cold Rolled Steel
• Operating Temperature: -40 to 140° F
• Output Impedance: Splitter – Nominal impedance 75 Ohms
• Supported Standards: Optimized performance in MoCA band, ANSI/SCTE 01 Compliant ECT F-port
• Mounting: Enclosure
• Mounting Hardware Included: Yes
• Shape: Rectangular
• Dimensions: 3(D) x 5(H) x 6(W) inches
• UL Standard: Yes
