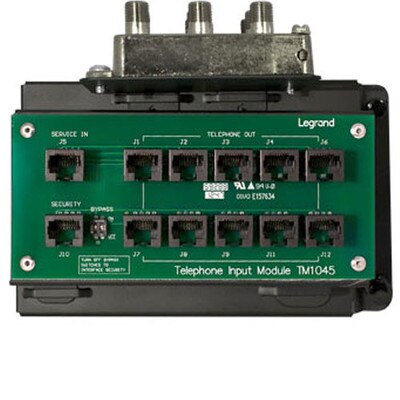

On-Q/Legrand 10x8 Combo Module RJ45 with RJ31X
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Distributes 4 Telephone Lines & One Video Signal
Save time and money when distributing telephone and video signals by installing the On-Q/Legrand 10x8 Combo Module RJ45 with RJ31X. This combo module distributes up to four incoming telephone lines (RJ45) to 10 locations, and a 1 GHz passive digital HDTV video signal to eight locations. The coaxial splitter is compatible with existing networks such as VoIP and DOCSIS 3.0.
- Distributes telephone and video
- RJ31X line seizure port for security
- Compatible with existing networks
- Mounting bracket included
The module comes with a uniquely designed mounting bracket that features a detachable platform for the coax splitter. This provides easy access to all termination ports during installation.
Contents
- Combo Module
- Mounting Bracket
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
- Cable Type: Cat 5, Cat5e, Cat 6, Coaxial
- Color: Black
- Connection Type: RJ45, F Connector, RJ31X
- Type: Telecom/Video Module
- Surge Protected: Splitter: Surge Withstand 6 kV Ring Wave Surge per IEEE C62.41 Category A3
- Frequency: 5 MHz-1002 MHz
- Material: 18 Gauge Cold Rolled Steel
- Mounting: Enclosure
- Ohm Value: Splitter: Nominal impedance 75 Ohms
- Operating Temperature: 40 to 140 degrees F (-40 to 60 degrees C)
- Receptacle Type: RJ45(10), F Connector(8), RJ31X(1)
- Number of Receptacles: 19
- Dimensions: 6(W) x 5(H) x 3.1(L) inches (15.2 x 12.7 x 7.9 cm)
- Weight: 1.485 pounds
- UL Standard: Yes
- UN SPS C: 43222819
