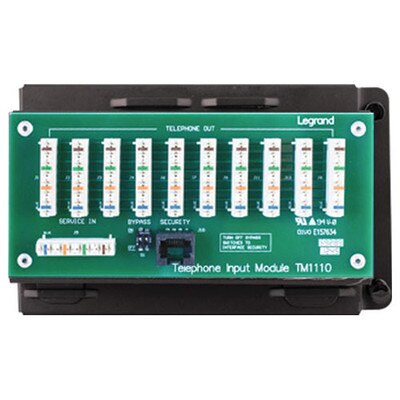

On-Q/Legrand 10-Way IDC Phone Module with RJ31X
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Distribute Phone Lines & Seize The Line For Security
The On-Q/Legrand 10-Way IDC Telephone Module with RJ31X distributes up to four incoming phone lines to 10 locations via 110 IDC punchdown connections. It also features an RJ31X port for line seizure in security applications. The module mounts in a structured wiring enclosure with the included bracket.
- Distributes 4 telephone lines to 10 locations
- RJ31X line seizure port for security
- Includes mounting bracket
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
- Color: Black
- Connection Type: Phosphor Bronze contacts, plated Gold over Nickel
- Type: Telecom Module
- Input Plug Type: RJ45 Male
- Connection Method: RJ45, RJ31X
- Material: 18 Gauge Cold Rolled Steel
- Mounting: Enclosure
- Receptacle Type: 1x RJ31x, 11x 110 IDC Telecom
- Number of Receptacles: 12
- Dimensions: 3.1(H) x 5.78(W) x 1.6(L) inches (7.9 x 14.7 x 4.1 cm)
- Weight: 1.05 pounds
- cULus: Yes
- UL Standard: Yes
- UN SPS C: 43222819
