OEM Systems Installation Bracket for 10" In-Ceiling Subwoofer
Bracket for C10SW 10" In-Ceiling Subwoofer

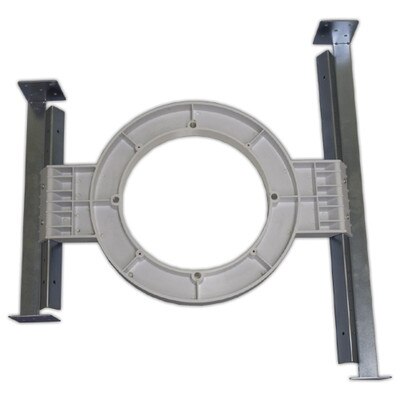

This MB-C10 combination mounting and pre-construction bracket is used to install the C-10SW Presence 10" In-Ceiling Subwoofer (sold separately). The Bracket and In-Ceiling Subwoofer system is designed to mount directly to 16" OC and 24" OC wooden frame construction members (ceiling joists and trusses).
The integrated system weighs approximately 11 pounds altogether, which is much too heavy to be suspended overhead in sheetrock, especially due to the powerful and potentially damaging excursions from the unit's 10" long-throw woofer. For the sake of safety, the system is designed so the entire assembly is mounted directly to the structure's framing members. It actually reinforces the sheetrock by unitizing the assembly and the structure's framing together.
While the subwoofer is primarily intended for new construction installs, it may also be retro-fitted into existing construction after the sheetrock is in place, as long as the opposite side is accessible to the installer. The structural mounting bracket may be installed from above the sheetrock.
Professional Quality From OEM Systems
OEM Systems Company is a manufacturer of architectural audio products and accessories for residential, commercial and institutional applications, including loudspeakers, electronics and decorator style jack plates.
