ArchiTech Premium 8" Frameless Speakers (Pair)


Huge Savings! (All Sales Final.)

1 available at this price.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$101.59 $148.95

WARNING: Cancer and Reproductive Harm –


No Framing, No Distractions

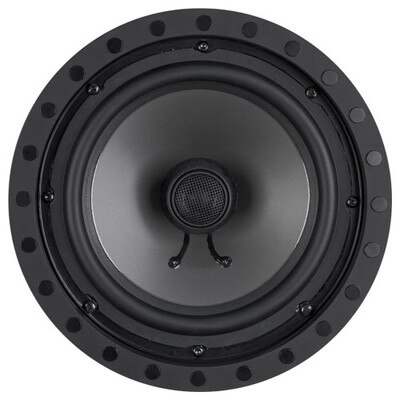

Achieve an extraordinarily clean, flush in-wall or in-ceiling speaker installation with ArchiTech Premium 8 In. In-Wall/Ceiling Frameless Speakers (Pair). These frameless speakers are designed to provide top notch audio through equipment that blends into the background. With linear long throw butyl rubber surround woofers, you get long-life and superior damping, and dome tweeters offer high-frequency dispersion for a fully satisfying listening experience.

  • Frameless speakers for clean, flush installations
  • Woofers offer long-life and superior damping
  • Dome tweeters provide high-frequency dispersion

Reference Standard Architectural Monitor Loudspeakers

OEM Systems Company is a manufacturer of Architectural Audio Products and accessories for residential, commercial and institutional applications, including loudspeakers, electronics and decorator-style multi-media jack plates.


  • Manufacturer Part #: SC-802f
  • Frequency Response: 35 to 20,000Hz
  • Power Handling: 50 watts nom., 100 max.
  • Sensitivity: 91dB 1 watt/1 meter
  • Tweeter: 3/4-inch pivoting textile soft dome tweeter

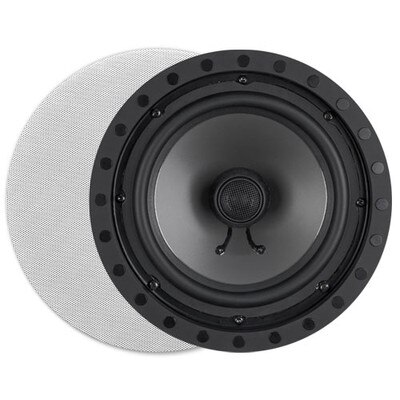

  • Frameless Grille: Magnetically attached. Perforated Stainless Steel Frameless Grille. (Round in-ceiling grille included. Optional square grille for in-wall installations sold separately.)
  • Impedance: 8 ohms
  • Overall Dimensions: 9-3/4" Diameter
  • Cutout Dimensions: 8-5/8" Diameter x 2-7/8" Deep
  • Pre-Construction Bracket: RIR-8
  • Vapor Dome: VPD-8
  • Bridge for T-Bar Ceiling: PB-8
  • Plenum Dome: PE-8
  • Frameless Square Grille: MGS-8f
