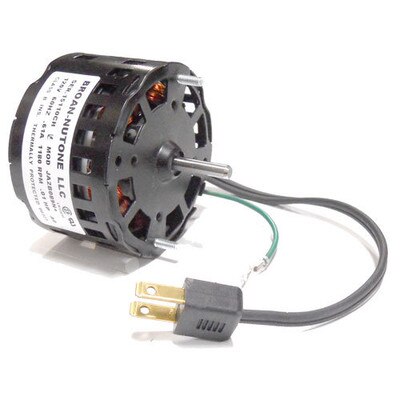

NuTone 86323 Replacement Fan Motor

SKU: NU86323

Order now and we'll ship same business day (if ordered before 3 pm PST).

$100.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

1180 RPM, 120 V

The NuTone 86323 Replacement Fan Motor is a replacement motor for various Broan/NuTone Ventilation Fans.

NuTone Bath / Ventilation Fans

Steamy mirrors in the bathroom. Damp walls in the laundry. Fogged windows. Seemingly minor annoyances often signal much deeper problems. Mold. Mildew. Peeling paint. Warping. Ruined insulation. Even wood rot. Concentrated moisture problems like these demand concentrated ventilation.

That's where NuTone comes in. As the residential ventilation leader, NuTone offers the widest range of intermittent ventilation products available. Many are industry innovations you won't find anywhere else. And all are designed and manufactured to NuTone's demanding quality standards, so you can count on them for easy installation, trouble-free operation and extended life.

Specifications

Technical Details

  • Manufacturer Part #: 86323000
  • Power: 1180 RPM, 0.61 Amps, 120 Volts, 60Hz
  • Shaft: 1/4 x 1 inches
  • Motor Diameter: 3.3 inches
  • Motor Case Length: 2 inches
  • Plug: 2 prong
  • Rotation: Clockwise
  • Mounting Studs: 2, Shaft End
  • Warranty: 1 Year
