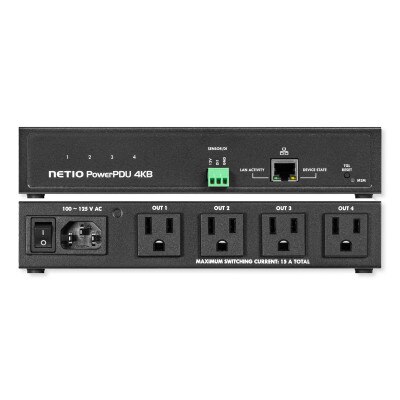

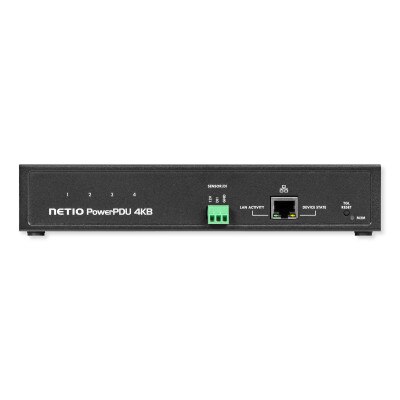

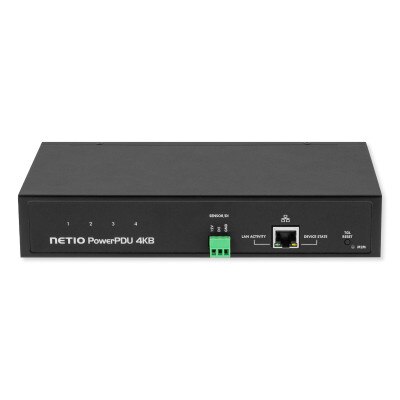

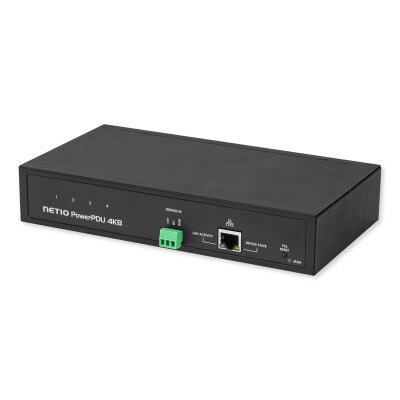

NETIO PowerPDU 4KB Smart Power Distribution Unit, 4 NEMA 5-15R Outputs

Precise Internet Connected Power Metering

Add remote monitoring and automated power management to your home or business with the NETIO PowerPDU 4KB Smart Power Distribution Unit, 4 NEMA 5-15R Outputs. The NETIO PowerPDU is a professional-grade power distribution unit (PDU) that features individually metered power outputs that offer precise energy monitoring and remote On/Off control of connected devices. This model includes 4 metered & switched power outputs (4x NEMA 5-15R) and 1x DI (Digital Input) for an external dry contact or temperature sensor. The Power PDU connects to a local network via Ethernet to allow for remote monitoring and integration into IT management systems, home automation platforms, and private control networks through ready made AV drivers or open API integration with various connectivity and network protocols. Receive real time energy consumption information and remotely turn On/Off or power cycle a single or group of outlets from your mobile device or remote computer via the NETIO Cloud service, web dashboard, or with the NETIO mobile app.

• Power distribution unit (PDU) with four NEMA 5-15R metered and remote controllable power outputs and 1 digital input (DI) for a dry contact or temperature sensor
• Each outlet can be switched On/Off/Reset, scheduled to turn On/Off/Reset, and send power consumption data from the NETIO Mobile 2 app and/or NETIO Cloud service
• Individually control and monitor outlets or group together for synchronized operation
• Secure LAN connectivity with multiple supported API protocols (JSON, XML, SNMP, Modbus/TCP, MQTT, Telnet, and more) guards from remote intrusion
• Type 3 surge protection, IP 30 protection, and durable industrial-grade design
• 3rd party integrations with FIBARO, Flic, Control4, ELAN, Savant, elgato, and more

The NETIO PowerPDU 4KB is designed for IT managers, AV professionals, and automation integrators who require advanced remote power control and monitoring. Each outlet can be independently switched on or off, reset, or scheduled according to operational needs, helping to reduce downtime and optimize energy usage. Built-in electrical metering allows users and admins to track real-time consumption, set alerts, and manage load distribution across systems. The digital input provides an external conditional option to trigger a change in status of selected outputs. By connecting and programming a button/switch or a temperature setpoint, the input can trigger a single or group of outlets to turn On/Off.

The device is easily capable of integrating with major automation platforms via its extensive list of open API protocols, making it a flexible choice for diverse installations.

NETIO PowerPDUs also include robust security features to protect against unauthorized remote access and cyber threats. Multiple user roles, password protection, and encrypted communications ensure a secure operating environment.

NETIO Mobile 2

Control your NETIO devices from your mobile device through the NETIO Mobile 2 mobile application for iOS and Android. The NETIO Mobile 2 app allows you to control multiple NETIO smart PDUs, strips, sockets and cables from your mobile device when sharing a local Wi-Fi network. If you have a subscription with the NETIO Cloud Service (sold separately) you can stay connected to your devices from anywhere, instead of having to be connected within the same Wi-Fi network.

From the NETIO Mobile App users can:

• Add/remove NETIO devices to your account
• Control individual power outputs or an entire NETIO PDU– ON, OFF, or RESET
• Read power consumption data (A, W, Wh)
• Activate / deactivate scheduled functions per each output
• Group outlets or NETIO devices together for synchronized control
• Output grouping – default group per one device can be changed individually
• Group control - Switch the whole group of outputs On / Off
• Group control - Activate / deactivate scheduled function for individual outputs, individual devices, or groups of devices
• Sorting of outputs within groups (by function or location)

NETIO Cloud

NETIO Cloud is a paid subscription service that provides users remote monitoring and control applications of their personal or business infrastructure from anywhere with an Internet connection. From one screen you can control dozens of electrical devices.

Through NETIO Cloud, users can review the power consumption of devices plugged into a PDU outlet or send On/Off/Restart (power cycle) commands to individual or groups of PDU power outlets. Multiple NETIO PDUs can be connected to one account and users can control PDU output(s) from the NETIO Mobile app for iOS & Android or the NETIO Cloud Service web dashboard.

From the NETIO Cloud UI users can:

• Utilize all functions of the NETIO Mobile app
• Create multi-user profiles for sharing devices in one account
• Define User Rights (roles) for remote access control
• Receive PDU Connection Alert feature sends email notifications for PDU disconnections due to connection or power failure
• Group and sub-group structure of PDU devices and outlets
• Search for available outlets and groups of outlets or devices
• Download Historical Power Measurement Data
• Receive remote firmware upgrades

Installation Details

NETIO Power PDUs plug into a standard grounded outlet with the included power cord and connect to the Internet via Ethernet/LAN connection. Power PDUs fit into 1U racks or can be placed atop a flat surface. Simply place the PDU in your rack or designated area, connect it to your router or access point, plug in your equipment to the outlets, and configure settings via the web interface for immediate operation.

Contents

• NETIO PowerPDU 4KB Unit
• Power Cord
• Quick Start Guide

Notes

• Requires a wired LAN connection; does not support Wi-Fi.
• For indoor, professional, or IT/AV use only.
• Compatible with 110V/230V AC systems; check power compatibility before installation.
• Mobile app and voice control are not included; remote control is available via browser or API integration.
• Professional installation is recommended for integration into IT or AV racks.

Smart PDUs Controlled Over LAN And Wi-Fi

Based out of the Czech Republic, NETIO Products Company is a proud producer of smart power strips and power cables that keep you and your equipment always connected. Their Internet connected power supplies support a wide variety of installations and utilize various API's and integrations to bring smart energy monitoring into any sized network or project.

• Manufacturer Part #: PowerPDU 4KB
• EAN: 8594185581147
• LAN (RJ45): Yes
• WiFi: No
• Online Demo: Yes
• Web: Built-in web server (http / https)
• FW Upgrade: Yes – via the device's WEB interface
• Downloads: FW archive
• Mobile App: NETIO Mobile 2 (Android & iOS)
• Cloud Connection Needed for Installation: No
• Control Button for Each Output: No
• Cloud Service: NETIO Cloud (for a fee, SSL security)
• Open API (M2M Protocols):
• JSON over HTTP (default) or HTTPs
• MQTT-flex (MQTT extension, supports SSL)
• SNMP v1
• SNMP v3
• Modbus/TCP
• XML over HTTP(s)
• URL API (http get) (control of outputs only)
• Telnet (control of outputs only, backwards compatible with KSHELL)
• HTTP(s) Push JSON
• HTTP(s) Push XML
• Lua Support: No
• Scheduler Function (Weekly Calendar): Yes
• IP WatchDog Function: Yes
• Power WatchDog Function: Yes
• Sending e-mails: No

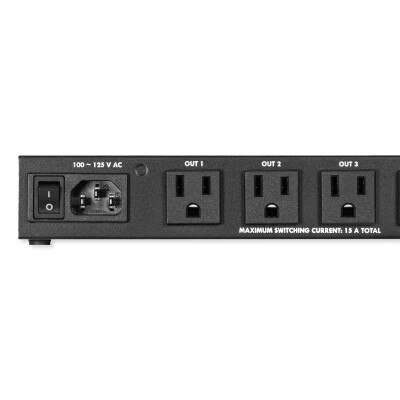

• Power Input: 1x IEC-320 C14, 100/125V [max 15A (UL rating 12A)]
• Mechanical Power Switch: No
• Power Output: 4x NEMA 5-15R [max 15A / output (UL rating 12A / output)]
• Number of Controlled Outputs: 4
• LED Indication of Output States: No
• Electrical Measurement: Yes
• Number of Metered Outputs: 4x
• Electrical Measurements:
• 4x Current [A]
• 4x Consumption [kWh]
• 4x Reverse Energy [Wh]
• 4x Power [W]
• 4x TPF (True Power Factor)
• Frequency [Hz]
• Voltage [V]
• Phase [°]
• Accuracy: <1% (25°C)
• Accuracy of electrical measurements: better than 1% (in the entire temperature range)
• Internal Consumption: 1-3 W
• Interfaces: 1x DI (Digital Input) for external dry contact mechanical switch
• Power for DI: 12V power (Max 50mA)
• Pulse Counter: S0 pulse counter (4 bytes)

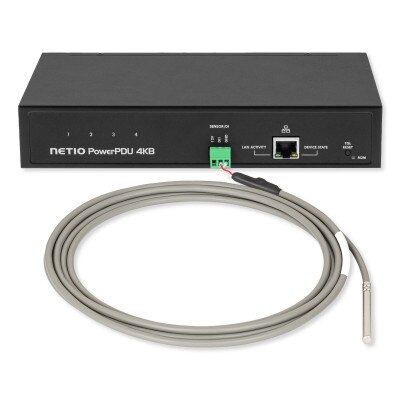

• External Sensor: Temperature probe NETIO T1 can be connected to DI
• HTTPs: Yes
• Custom HTTPs Certificates: Yes
• 802.1x Authentication (Radius): Coming soon
• SPD – Surge Protection: Yes, type 3 (125J (8/20us))
• Switching Element: relay SPST-NO, ZCS
• ZCS (Zero Current Switching): Yes
• IOC (Output State Independent from FW Updates): Yes
• PowerUp State of Outputs: On / Off / LAST state
• Dimensions: 8.66 x 1.57 x 4.72 mm (220 x 40 x 120 mm)
• Weight: 1.65 lb (750 g)
• Mechanical Mounting: 19" (1U) rack mount
• Ingress Protection: IP30
• Sound Output: No
• Temperature Range:
• -4 °F to 149 °F / 5A (-4 °F to 122 °F / 15A)
• (-20 °C to 65 °C /5A (-20 to 50 °C /15A))
• Relative Humidity: 0 – 97% (non condensing)
• UL Certification: Yes
• TAA Compliant: Yes
• Designed and Manufactured: European Union (Czech Republic, Prague)
