Napco Microprocessor PIR Sensor & Room-Temp Alert, Pet Immune (65 Lbs.)

SKU: NPPIR1680PT

Order now and we'll ship same business day (if ordered before 3 pm PST).

$26.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Pet Immunity & Built-In Temperature Sensor

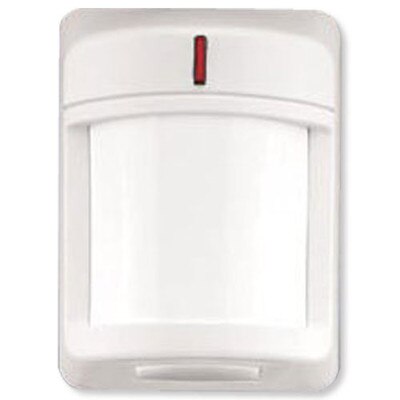

The Napco Microprocessor PIR Sensor detects movement in your home without limiting the freedom of your pets. The sensor features pet immunity for small animals up to 65 pounds, and a detection range up to 45 feet. The sensor also includes a built-in room temperature alert that notifies you when the surrounding environment goes above or below preset temperature points. This helps you prevent heat and/or freeze damages to your property.

  • Detection range up to 45 feet
  • Pet immunity for small animals up to 65 pounds
  • Built-in temperature sensor
  • Customizable motion detection range
  • Tamper/vandalism supervision

Auto-Adjusting Temperature Sensor

Automatic temperature compensation technology works in conjunction with the built-in temperature sensor to automatically adjust for seasonal and climate variances, providing accurate detection for any environment. The low-temp alert is set at 40 degrees F (4 degrees C), and can be used to help prevent pipes from bursting or freezing. The high-temp alert is set at 90 degrees F (32 degrees C) to prevent a freezer from defrosting/thawing or perishables from being damaged by extreme heat.

Advanced Detection Capabilities

The PIR Sensor offers customizable motion detection range and features a calibrated adjustable potentiometer that lets you fine-tune range during a walk-test. Additionally, the sensor’s advanced microprocessor provides exceptional false alarm rejection with its embedded library of valid and false alarm signal signatures. This library enables the PIR to differentiate between intruders and animals or other typical false alarm sources.

Versatile Mounting Options

The detector is designed for convenient installation on a wall or in a corner, and can be precisely aimed horizontally or vertically by repositioning the PCB within the enclosure for a full range of coverage. The sensor also has a large wiring channel, a generous terminal strip, and a captive PCB screw for quick, easy, and professional installation.

The PIR Sensor is housed in an insect-safeguarded enclosure. The sealed sensor chamber prevents insects, draft and dust interference, ensuring reliable detector performance. The sensor also incorporates tamper/vandalism supervision to defend against sabotage or vandalize. If opening of the enclosure is attempted, the sensor alerts you. Additionally, the sensor is protected from interference due to static discharge, power surges, electric spikes, etc.

Built By Security Professionals For Security Professionals

The NAPCO Security Group is a leading diversified manufacturer of security products, encompassing burglar and fire alarms, access control systems, video and electronic digital and proximity locks, as well as panic exit hardware. Sold and installed by tens-of-thousands of security professionals, from security dealers to locksmiths to systems integrators, millions of homes, businesses, institutions and people around the globe are protected by products from the NAPCO Group of Companies.

Specifications

  • Range: 45 x 45 feet
  • Microprocessor: Y
  • Look Down (Creep): Y
  • Pet/Animal Immunity: Y
  • Pir Pulse Processing: DCID
  • Auto-Temp: Y
  • Lenses Available: 14
  • Flush Mount Kit: N
  • Swivel Bracket Kit: SVL2
  • Relay Time 1.0 (Sec): 3
  • Idle/Alarm: 28/33 mA
  • Dimensions: 3.3 x 2.5 x 1.9 inches
  • Extras: Built-in Temperature Alert Sensor
