Linear Wiegand Output Receiver, 500 Foot Range


Order now and we'll ship same business day (if ordered before 3 pm PST).


WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov


Output Radio Reader Model WOR

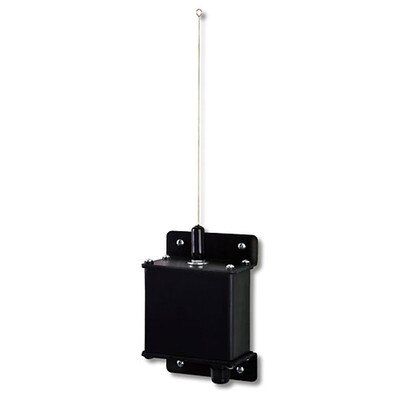

The WOR Wiegand Output Receiver is designed for use as an access control interface for Linear’s block coded digital transmitters. The unit receives signals from transmitters, adds a facility code to the data, and sends the information to the Wiegand input of the access control panel via a 5-wire connection.

Several transmitter and receiver options can be set using the unit’s dipswitches. Three different Wiegand output formats (26, 30, & 31-bit) are supported. Three receiver options (lockout, hold, & button offset) can be set. Transmitter buttons on multi-button units can be selectively disabled. The facility code is set using 16 dipswitches.

Three antenna types can be used with this receiver. The local whip antenna (supplied) screws directly on to the receiver. The directional (EXA-2000) and omni-directional (EXA-1000) remote antennas attach to the receiver’s antenna input via RG-59 cable and a type F connector.

An on-board RADIO RANGE knob allows adjustment of the receiver’s gain. It can be set to limit the maximum radio range that the receiver can achieve. Two indicators display the receivers performance and operation. The red RADIO indicator lights when the receiver detects a radio signal. The two color red/green STATUS indicator lights green when the receiver is sending Wiegand data and during the 1-second post receiver lockout timer (if receiver lockout is enabled). The indicator turns red when the receiver’s HOLD input (connected to the access control panel) is active. Receiver test points are provided for listening to the incoming signals with an audio amplifier.

Power input to the resciver can either be regulates 5 volts or 8-24 volts DC (jumper selected).

The receiver is housed in a weather-resistant enclosure and can be mounted indoors or outdoors. Gaskets and a weather-tight wiring strain relief seal the unit from the elements.

Linear MegaCode Radio Controls

From garage door openers to gate operators, from loading dock doors to access control systems, from everyday entry to high security, Linear makes radio controls to cover the industry’s diverse range of applications. Single and multi-channel transmitters and receivers can be mixed and matched within product families to address just about any user need. Our popular Delta 3 line offers 256 codes and a 310 MHz frequency, which is ideal for most sites. Our MegaCode line offers a 318 MHz frequency and adds the security of over 1,000,000 codes, each sequentially preset by the factory to all but eliminate any possibility of duplication. And our Multi-Code and Stanley compatible radio controls each offer 1,024 codes and either 300 or 310 MHz frequency. These four radio control lines are further supplemented by a series of high performance controllers for configuring access control systems of nearly any size and entry method. If it’s radio controls you need, you’ve come to the right source.


Product Features

  • Easy way to equip existing installations with radio transmitter access
  • Keyless entry offers user convenience, safety and security for triggering gates, barrier arms and doors
  • Ideal way to facilitate handicapped access
  • Multi-button transmitters can double as personal emergency devices for triggering security alarms
  • RF input/Wiegand output receiver supports 26, 30 and 31-bit data formats
  • Wide selection of MegaCode (over 1 million codes) format transmitters, with available block coding
  • Field adjustable read range – from 5 to 500 feet
  • Connects as easily as card readers; transmitters are added like cards, with no software changes required
  • Facility and ID codes tailored to system requirements
  • Weather-resistant case for mounting outdoors
  • RF frequency: 318 MHz
