Linear Stanley Compatible Visor Transmitters

310 MHz Stanley Compatible Multi-Code Radio Control

The Linear Visor Transmitter is designed for use with all dip-switch based Stanley garage door operators and gate control operators. The transmitter is multi-code based with a frequency of 310 MHz.

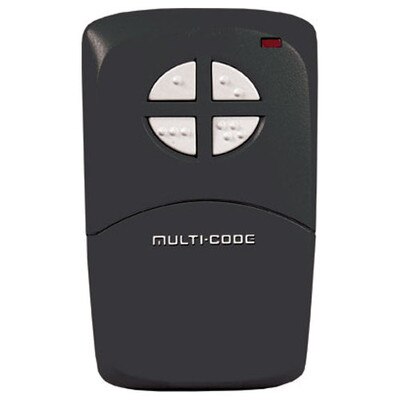

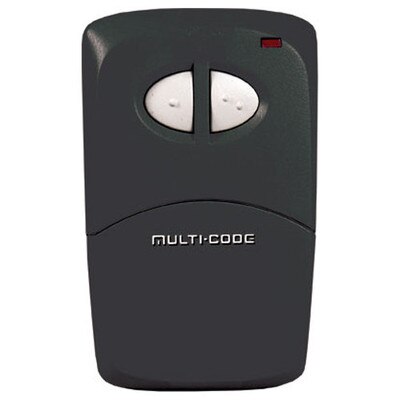

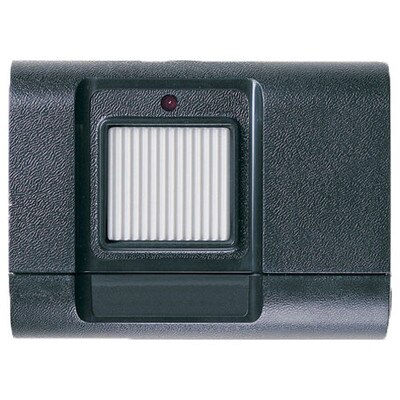

Available Channels: 1-Channel, 2-Channel, or 4-Channel.

Radio Controls For Every Requirement From Linear

From garage door openers to gate operators, from loading dock doors to access control systems, from everyday entry to high security, Linear makes radio controls to cover the industry’s diverse range of applications. Single and multi-channel transmitters and receivers can be mixed and matched within product families to address just about any user need. Linear’s popular Delta 3 line offers 256 codes and a 310 MHz frequency, which is ideal for most sites. The MegaCode line offers a 318 MHz frequency and adds the security of over 1,000,000 codes, each sequentially preset by the factory to all but eliminate any possibility of duplication.

These two radio control lines are further supplemented by a series of high performance controllers for configuring access control systems of nearly any size and entry method. And by Linear’s Multi-Code radio controls, which offer 1,024 codes and a 300 MHz frequency. If it’s radio controls you need, you’ve come to the right source.

• Test/operate LED
• Easy access to battery and dip switch
• Two-channel model operates two independent garage doors or an automatic gate and a garage door; four-channel provides control of up to four separate operations

Technical Details

• Power: long-life 9 V battery
• Frequency: 310 MHz
• Codes: 1,024 on one and two-channel models; four-channel features two sets of dip switches, offering 512 codes each
• Dimensions: 3.75 x 2.5 x .875 inches

»Linear Stanley Compatible Visor Transmitters Installation Manual (.pdf)
