Linear Omni-Directional Remote Antenna for DX Receivers

SKU: LNEXA1000

Usually ships in 3-5 days.

$50.66

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Enhance Range Of Linear Receivers

The Linear Omni-directional Remote Antenna (EXA-1000) is designed to enhance the radio range of Linear’s receivers. This antenna can be connected to the F connector on many Linear receivers to improve their range when they must be located in poor signal reception locations. Usually an increase of 20-30% range can be expected. The versatile EXA-1000 can be mounted in a variety of ways. A 2-inch U-bolt is supplied for post or pipe mounting, or the U-bolt holes in the Base Plate can be used to screw the antenna to a wall or vertical wood brace or beam.

  • Omni-directional remote antenna
  • Includes 5 feet of coax
  • U-bolt for post mounting

Note: Generally, the higher the antenna is mounted above ground level, the better the radio range will be.

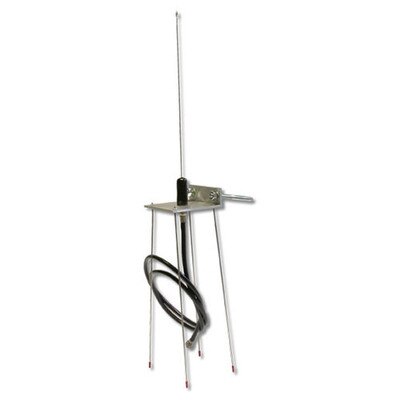

The EXA-1000 is a 1/2 wave, center fed, vertical antenna composed of three parts: an Antenna assembly with an F connector attachment; a Base Plate assembly with radial mounting provisions; and a five-foot, 75-ohm coaxial cable. The cable connects to the antenna base on one end and the receivers F connector on the other. If the antenna must be mounted further than five feet from the receiver, an extension cable of up to a maximum of 25 feet may be used instead of the five foot cable supplied. Because of the cable resistance, the performance of the EXA-1000 may be degraded by using longer than a 25 foot cable.

Four Decades Of Quality Security Systems!

For more than four decades, Linear has been a leader in the development of RF transmitters and receivers for the professional security market. Whatever you need for creating wireless security can be found at Home Controls – panics, door/windows, smokes, PIRs, plus all the receivers and controllers that support them.

Specifications

  • Manufacturer Part #: EXA-1000
  • Operating Frequency: 315 MHz
  • Data Format: DX format
  • Number of Codes: 1,048,575
  • Number of Channels:
    • DXR-701 (1-Channel): Wire lead
    • DXR-702 (2-Channels): F-connector with antenna (supplied)
  • Measure Range: 700 feet in one quadrant with DXT-21 transmitter; 500 feet in open air (four quadrant test)
  • Operating Temperature: 32° to 140° F (0° to 60° C)
  • Sensitivity: -95 dBm (typical)
  • Number of Stored Transmitter Codes: 32 per receiver
  • Receiver Output: For "C" relay contact, 1 amp, at 32 VDC per channel
  • Input Impedance: 75 Ohm - 2:1 VSWR
  • Operating Voltage:
    • DXR-701: 11 to 17.5 VDC
    • DXR-702: 12 to 16 VAC
  • Current:
    • 25 mA at standby at 12 VDC
    • 60 mA in alarm at 12 VDC, DXR-701
    • 90 mA in alarm at 12 VDC, DXR-702
  • Regulatory Requirements: FCC and DOC
  • Dimensions: 3" W x 19.5" H x 6" D
  • Warranty: 1 Year
