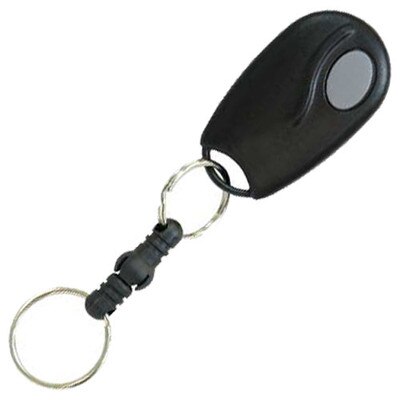

Linear MegaCode Block Coded Key Ring Transmitter & Proximity Tag, 1-Channel

SKU: LNACT31D

Order now and we'll ship same business day (if ordered before 3 pm PST).

$29.00

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Convenient & Durable Transmitter

The Linear MegaCode Block Coded Key Ring Transmitter & Proximity Tag, 1-Channel is a single-button miniature transmitter that sends one wireless code to Linear's access control products. It allows you to wirelessly operate Linear products such as door/gate access systems, and garage door openers.

  • Ideal for door, gate, and garage door operators
  • Eliminates need for separate proximity cards
  • Rugged construction for long-term everyday use
  • Comes with quick-disconnect key ring
  • Compatible with all MegaCode access receivers and controllers

Enhanced Security with MegaCode Technology

The transmitter is in MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver "learns" each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.

Additional Features

A unique 10-second time-out feature prevents the system from being shut down by a single transmitter transmitting continuously.

The transmitter also contains a 26-bit Wiegand proximity tag programmed to the same block code as the transmitter. The tag is compatible with the AM-DPR Dual Proximity Reader. Waving the transmitter near the reader will request access from the system.

Contents

  • Transmitter
  • Quick-disconnect key ring
  • Batteries

Security Products, Access Control & More By Linear

For more than forty years, Linear LLC has been known as a worldwide provider of radio based transmitters and receivers for the traditional security market. Millions of Linear transmitters have been sold over the years. Linear security products are offered via a worldwide network of distribution. While Linear continues to be a leading supplier of devices for the security market, we have expanded our product lines to include focused product lines in the Access Control, Remote Control and Garage Door Operator markets.

Specifications

  • Power: Two 3V 2016 batteries
  • Codes: Factory block coded in MegaCode format
  • RF frequency: 318 MHz
  • Number of codes: 1,000,000 plus ID codes, (15 facility codes)
  • Proximity format: 125 KHz non-proprietary proximity, 26 bit Wiegand
  • Battery life: 5 years
  • Dimensions: 1.25(W) x 2.25(H) x 0.48(D) inches
