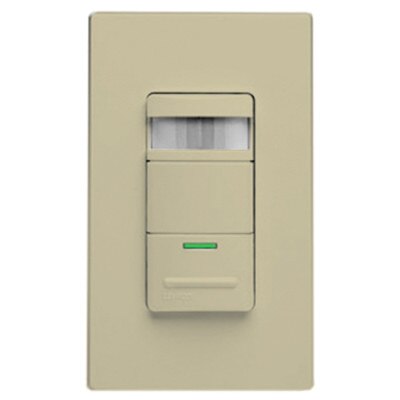

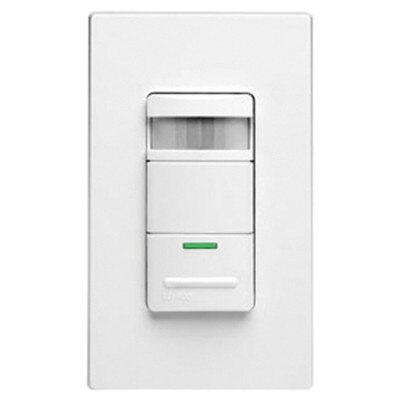

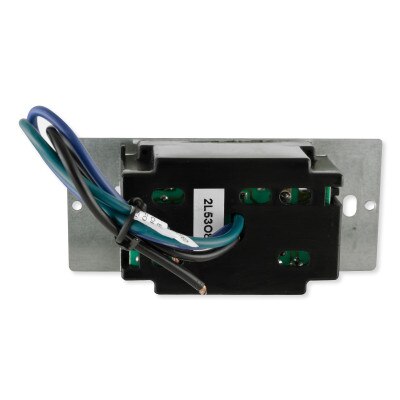

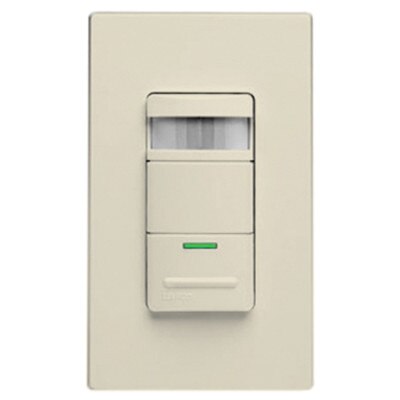

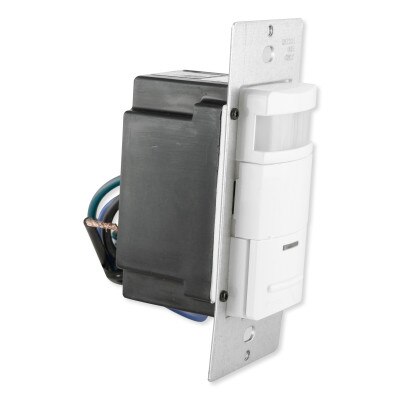

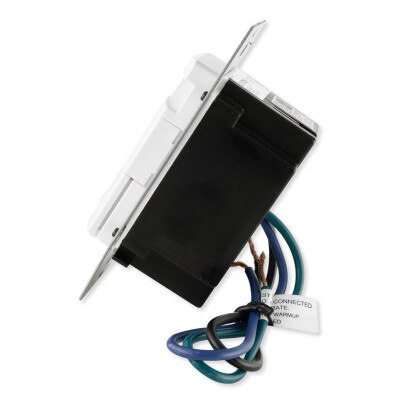

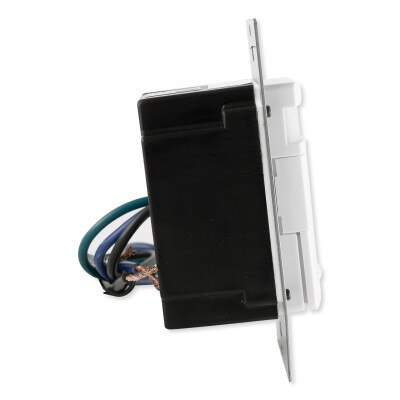

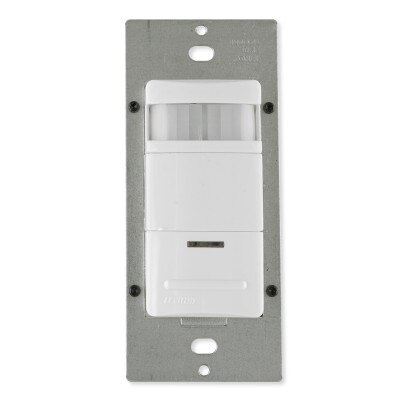

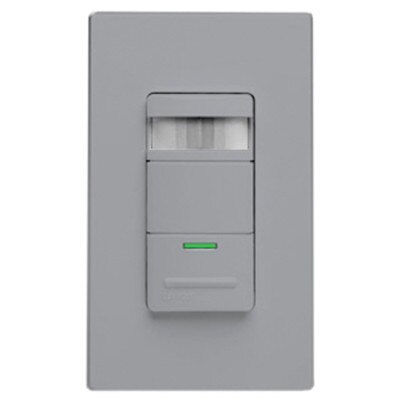

Leviton Wall Switch Occupancy Sensor, 800W@120V

SKU: LVODS10IDx

Please Select Option To View Availability

$51.94 to $54.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Single Pole (One Location) Or Multi-Location

The Leviton Decora Wall Switch Passive Infrared (PIR) Occupancy Sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications, including: Small offices, Conference rooms, Lounges, and Class rooms.

This Wall Switch Occupancy Sensor can be used for automatic switching of incandescent lamps and fluorescent and low-voltage lighting with electronic or magnetic ballasts. The unit also features a manual override switch that can be used to keep lights OFF while an area is occupied, which may be desired in conference rooms and other areas during slide or film presentations. The Wall Switch installs in place of a single-pole wall switch and fits in a standard wall box.

NOTE: Requires ground connection.

Leviton Lighting Controls

Leviton offers a wide variety of lighting controls that combine sophisticated design with state-of-the-art technology. These include dimmers, scene controllers, timers, motion sensors, and occupancy sensors. The comprehensive line comes in a vast array of styles and lighting loads. Their contemporary styling provides precise, dependable control and complements all home decors, while offering the potential for significant energy savings. Discover how Leviton lighting controls can be one of the easiest and most cost-effective ways to upgrade any living area.

Specifications

  • Switch Type: Single-Pole
  • Adjustment: Manual
  • Technology: Passive Infrared
  • Pattern Degrees: 180
  • Coverage Range Sq. Ft.: 2100
  • Time Adjustment: 30s-20m
  • Load Rating: 800W@120V INC 1200VA@120V 2700VA@277V FL
  • Voltage: 120/277 Volt AC 60Hz
  • Wiring Neutral / Ground: Ground Required
  • Photo Cell: Ambient Override ON
  • Wallplate: Order Separately
  • Color: White, Gray, Light Almond, Ivory
  • Standards and Certifications: UL/CSA
  • Code Compliance: California Title 24
